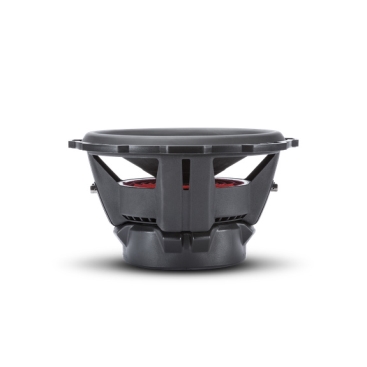

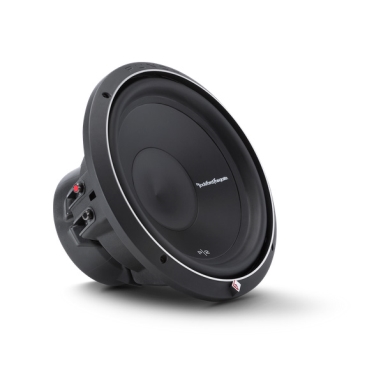

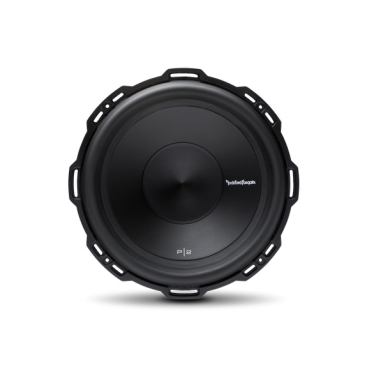

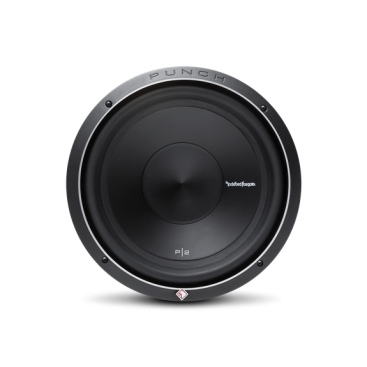

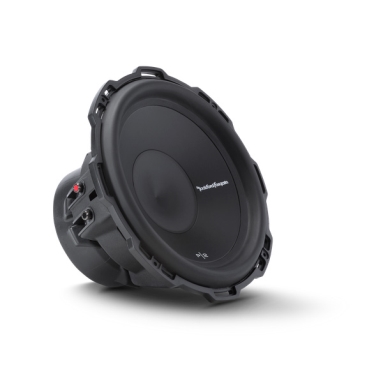

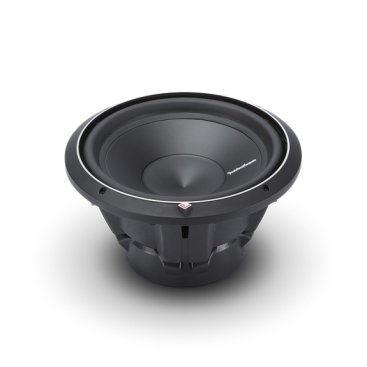

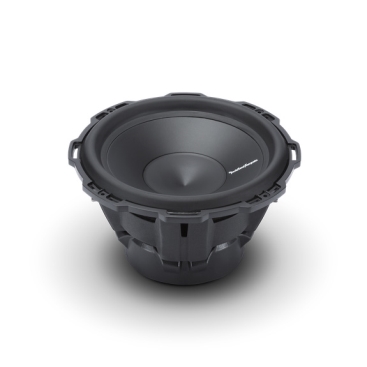

ROCKFORD FOSGATE, PUNCH 12″ P2 4-OHM DVC SUBWOOFER

Specifications:

• Power Handling (Watts RMS)
  • 400 Watts RMS
  • 800 Watts Max
• Size
  • 12″
• Speaker Connector
  • Dual 10 AWG compression
• Shipping Weight
  • 15.6 Lbs. (7.07 kg)
• CEA-2031 Compliant
• Cutout Diameter
  • 11.22 in. (285 mm)
• Re (Ohms)
  • 6.40
• Qes
  • 0.59
• Qms
  • 6.30
• Nominal Impedance
  • Dual 4-Ohm
• Mounting Depth
  • 6.40 in. (162 mm)
• Voice Coil Diameter
  • 2.25″ (57.15 mm)
• SPL (dB @ 1w/1m)
  • 86
• Fs (Hz)
  • 27.2
• Qts
  • 0.54
• Vas (Liters)
  • 81.5
• Xmax (mm)
  • 13.3
• Le (mH)
  • 5.5
• Woofer Displacement
  • 0.085 cu. ft. (2.4 Liters)
• Magnet Weight (oz)
  • 72.8 oz. (2.06 kg.)
• Sd (cm²)
  • 570
• Subwoofer Type
  • Standard
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 1.02 cu. ft. (28.8 Liters)
• Vented Box Volume (Vb)
  • 1.79 cu. ft. (50.6 Liters)
