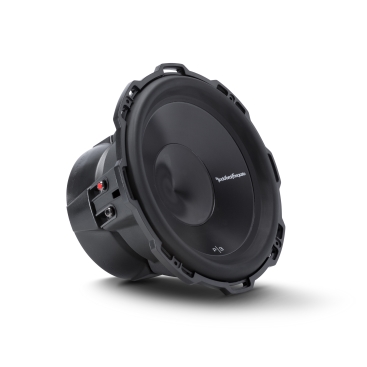

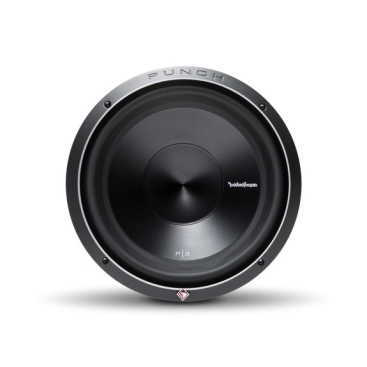

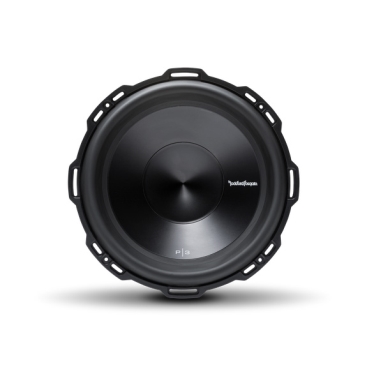

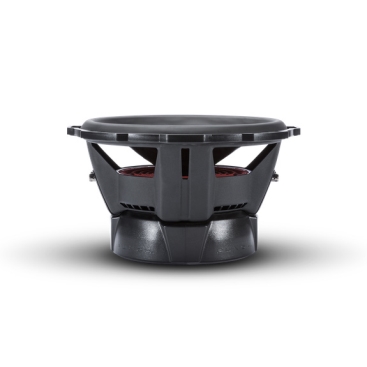

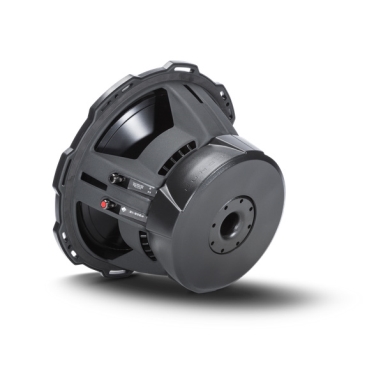

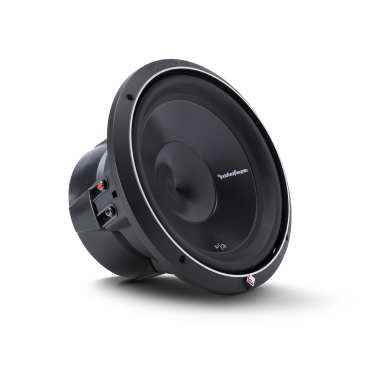

ROCKFORD FOSGATE, PUNCH 12″ P3 2-OHM DVC SUBWOOFER

Specifications:

• Power Handling (Watts RMS)
  • 600 Watts RMS
  • 1200 Watts Max
• Magnet Weight (oz)
  • 96 oz. (2.73 kg.)
• Voice Coil Diameter
  • 2.5″ (65.5 mm)
• Size
  • 12″
• Nominal Impedance
  • Dual 2-Ohm
• Mounting Depth
  • 6.66 in. (169.3 mm)
• Woofer Displacement
  • 0.106 cu. ft. (3.0 Liters)
• Re (Ohms)
  • 3.20
• Speaker Connector
  • Dual 10 AWG compression
• SPL (dB @ 1w/1m)
  • 85
• Fs (Hz)
  • 26.5
• Shipping Weight
  • 20.9 Lbs. (9.48 kg)
• Qts
  • 0.49
• Qes
  • 0.53
• Qms
  • 6.70
• Cutout Diameter
  • 11.25 in. (285 mm)
• Le (mH)
  • 4.25
• CEA-2031 Compliant
• Vas (Liters)
  • 57.7
• Xmax (mm)
  • 15.2
• Sd (cm²)
  • 570
• Subwoofer Type
  • Standard
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 1.02 cu. ft. (28.8 Liters)
• Vented Box Volume (Vb)
  • 1.79 cu. ft. (50.6 Liters)
