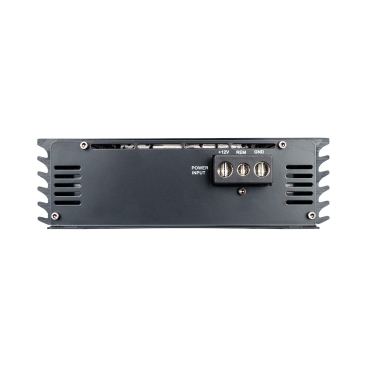

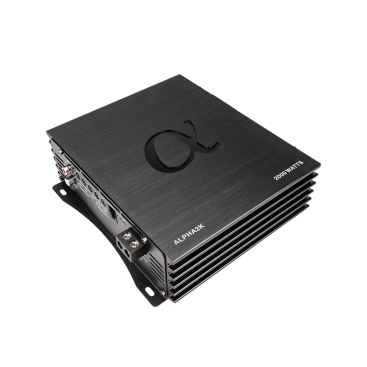

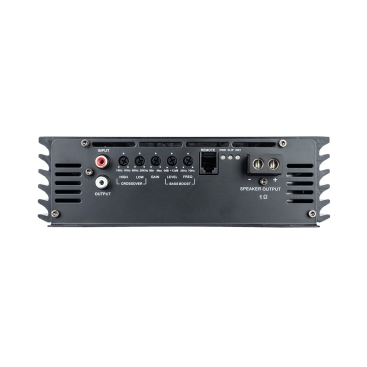

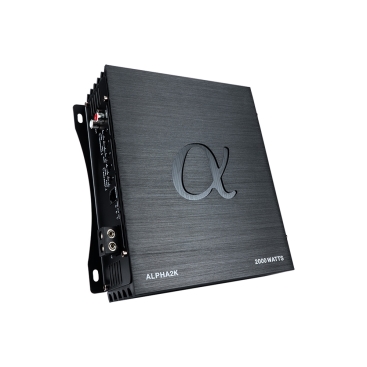

ALPHASONIC, FULL RANGE CLASS D AMPLIFIER, 2000W

Specifications:

• 2000 Watts Output
• 900 Watts x 1 @ 4 Ohms Mono
• 1550 Watts x 1 @ 2 Ohms Mono
• 2000 Watts x 1 @ 1 Ohms Mono
• Dimensions: (W x H x L)
  • 7.28 x 2.30 x 7.68”
  • (185 x 58.5 x 195mm)

–  4-Ohm Mono Stable

–  2-Ohm Mono Stable

–  1-Ohm Mono Stable

–  Low Level Inputs

–  Frequency Response:  15Hz – 20kHz

–  Signal To Noise Ratio:  >100dB (+/-3dB)

–  Total Harmonic Distortion:  1.0%

–  Bass Boost:  0 – 12dB

–  Variable Bass EQ:  35Hz – 70Hz

–  Variable Input Sensitivity (200mV – 6V)

–  Variable Low-Pass Crossover:  50Hz – 20kHz

–  Variable High-Pass Crossover:  15Hz – 2kHz

–  4-Way Protection Circuitry:  Thermal, Short Circuit, Overload and DC Offset

–  M-Spec Double-Sided Glass Epoxy Circuit Board

–  Nickel-Plated Terminal Blocks

–  Remote Bass Knob

We are proud to introduce the ALPHA Series. They are design and engineered in the USA in order to bring the most efficient signal to noise ratio in the market.  As it’s names says it, these are our most power and size efficient amplifiers. The small and digital technology design makes them one of the most desirable  yet in our line up to full-fill this new trend of car audio enthusiast.
