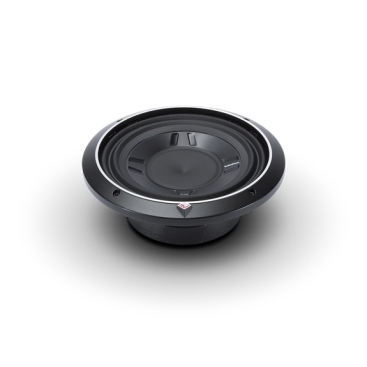

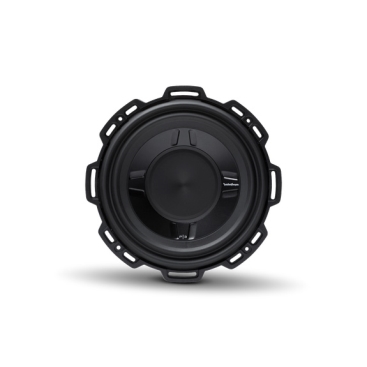

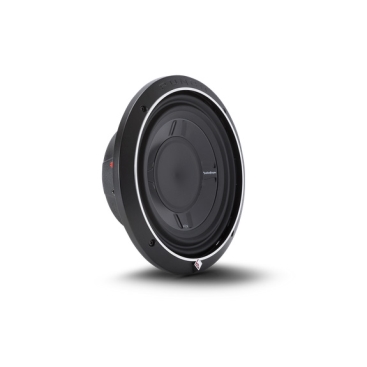

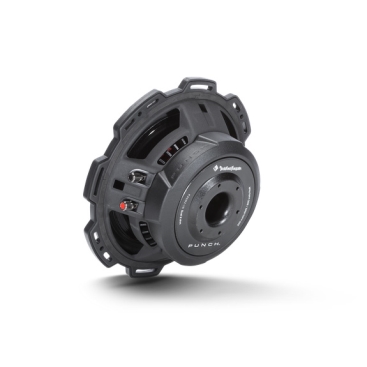

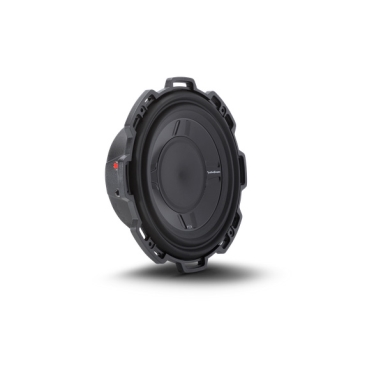

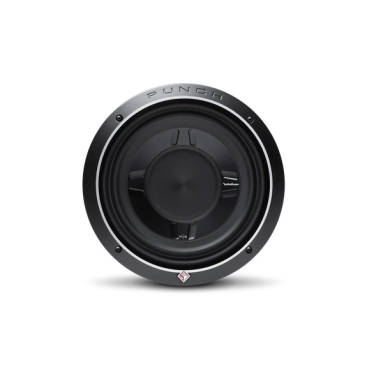

ROCKFORD FOSGATE, PUNCH 10″ P3 4-OHM DVC SHALLOW SUBWOOFER

Specifications:

• Magnet Weight (kg) NOT USED
  • 1.32 oz. (47 kg.)
• Nominal Impedance
  • Dual 4-Ohm
• Magnet Weight (oz)
  • 47 oz. (1.32 Kg)
• Voice Coil Diameter
  • 2.5″ (65.5 mm)
• SPL (dB @ 1w/1m)
  • 83
• Cutout Diameter
  • 9.06 in. (230.0 mm)
• Qms
  • 6.00
• Vas (Liters)
  • 14.3
• Fs (Hz)
  • 42
• Woofer Displacement
  • 0.074 cu. ft. (2.1 Liters)
• Sd (cm²)
  • 333
• Size
  • 10″
• Speaker Connector
  • Dual 10 AWG Compression
• Qts
  • 0.78
• Shipping Weight
  • 11.9 Lbs. (5.39 kg.)
• Mounting Depth
  • 3.50 in. (89.0 mm)
• Qes
  • 0.90
• Xmax (mm)
  • 8.1
• CEA-2031 Compliant
• Power Handling (Watts RMS)
  • 300 Watts RMS
  • 600 Watts Max
• Re (Ohms)
  • 6.80
• Le (mH)
  • 4.3
• Subwoofer Type
  • Shallow
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 0.5 cu. ft. (14.1 Liters)
• Vented Box Volume (Vb)
  • cu. ft. (28.3 Liters)
