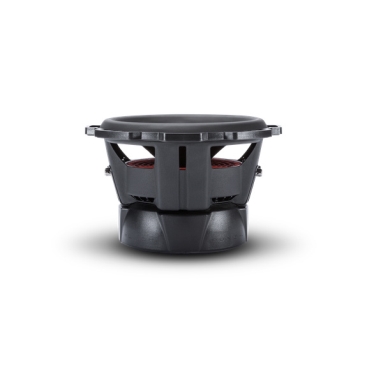

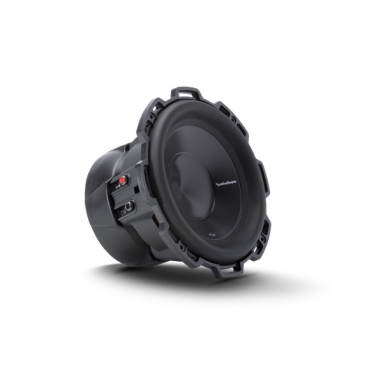

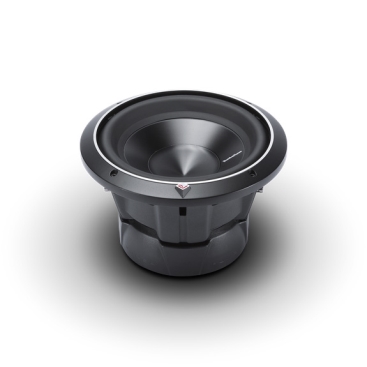

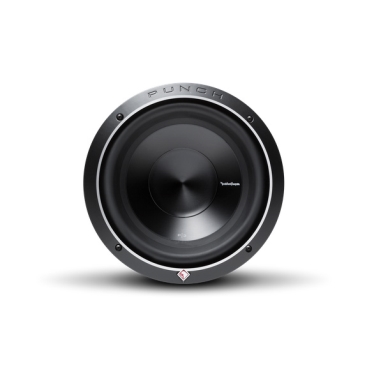

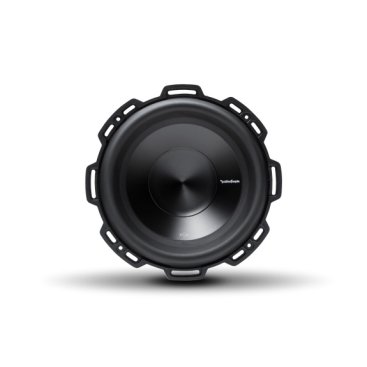

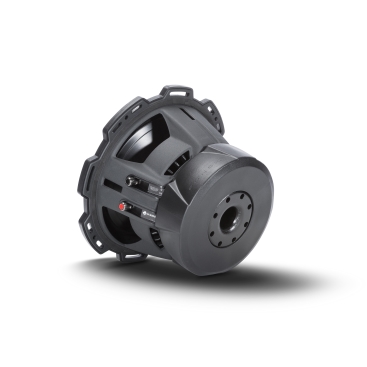

ROCKFORD FOSGATE, PUNCH 10″ P3 2-OHM DVC SUBWOOFER

Specifications:

• Power Handling (Watts RMS)
  • 500 Watts RMS
  • 1000 Watts Max
• Nominal Impedance
  • Dual 2-Ohm
• Mounting Depth
  • 6.18 in. (156.8 mm)
• Voice Coil Diameter
  • 2.5″ (65.5 mm)
• Fs (Hz)
  • 26.6
• Woofer Displacement
  • 0.070 cu. ft. (2.0 Liters)
• Qes
  • 0.54
• Qms
  • 6.00
• Vas (Liters)
  • 27.0
• Size
  • 10″
• Sd (cm²)
  • 360
• Speaker Connector
  • Dual 10 AWG compression
• Shipping Weight
  • 17.3 Lbs. (7.8 kg)
• SPL (dB @ 1w/1m)
  • 82
• Qts
  • 0.49
• Cutout Diameter
  • 9.13 in. (232 mm)
• Magnet Weight (oz)
  • 81 oz. (2.30 kg.)
• Le (mH)
  • 4.5
• Re (Ohms)
  • 3.20
• CEA-2031 Compliant
• Xmax (mm)
  • 15.2
• Subwoofer Type
  • Standard
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 0.59 cu. ft. (16.7 Liters)
• Vented Box Volume (Vb)
  • 1.4 cu. ft. (39.6 Liters)
