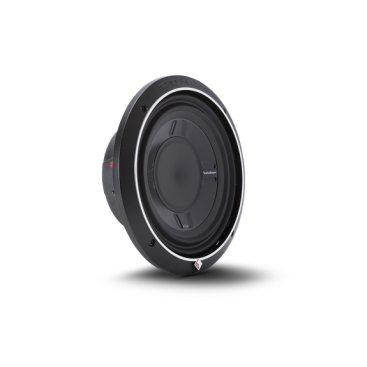

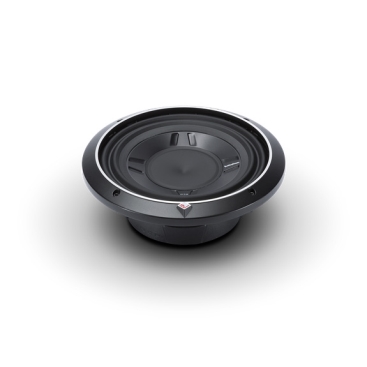

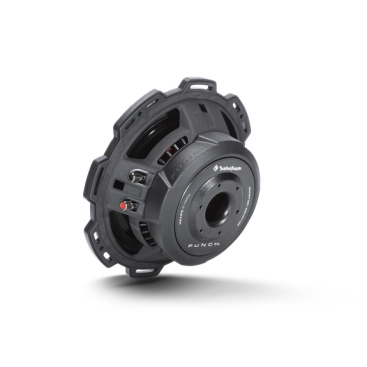

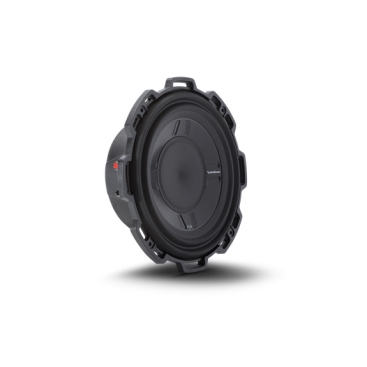

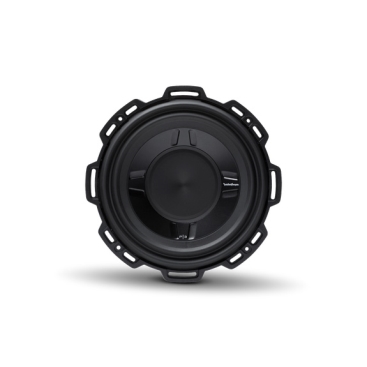

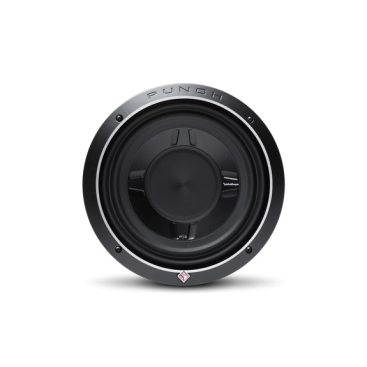

ROCKFORD FOSGATE, PUNCH 10″ P3 2-OHM DVC SHALLOW SUBWOOFER

Specifications:

• Size
  • 10″
• Speaker Connector
  • Dual 10 AWG Compression
• Mounting Depth
  • 3.50 in. (89.0 mm)
• Magnet Weight (oz)
  • 1.32 oz. (47 kg)
• Voice Coil Diameter
  • 2.5″ (65.5 mm)
• Shipping Weight
  • 11.9 Lbs. (5.39 kg.)
• Qts
  • 0.64
• Vas (Liters)
  • 14.3
• SPL (dB @ 1w/1m)
  • 83
• Woofer Displacement
  • 0.074 cu. ft. (2.1 Liters)
• Le (mH)
  • 2.8
• Re (Ohms)
  • 3.40
• Nominal Impedance
  • Dual 2-Ohm
• Fs (Hz)
  • 40
• Power Handling (Watts RMS)
  • 300 Watts RMS
  • 600 Watts Max
• Qes
  • 0.71
• Qms
  • 6.20
• Cutout Diameter
  • 9.06 in. (230.0 mm)
• CEA-2031 Compliant
• Sd (cm²)
  • 333
• Xmax (mm)
  • 8.4
• Subwoofer Type
  • Shallow
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 0.5 cu. ft. (14.1 Liters)
• Vented Box Volume (Vb)
  • cu. ft. (28.3 Liters)
