KICKER SUMMING INTERFACE

SKU: 10ZXSUM8 Categories: Sound Processors, OEM Audio Integration Tag: import

Sums up to four speaker-level stereo pairs down to a single stereo RCA low-level output
Each stereo channel is capable of both summing and line-output conversion; switched internally
Integrate portable media direct to your amp using aux-in and level control
4 stereo speaker-level inputs
4 line-level stereo RCA outputs
1 stereo RCA aux-input
Balance levels from multiple speaker-level sources
Multi-function remote controls both the aux-input level and the Channel-4 output to separately adjust bass and aux levels from the same remote source

Model	ZXSUM8

Max Voltage In: Vrms	40
Max Aux-In Voltage: Vrms	40
Max Voltage Out (Chan. 1-3): Vrms	9
Max Voltage Out (Chan. 4): Vrms	6
Signal-to-Noise Ratio (Chan. 1-3) ref 1V: dB	90
Signal-to-Noise Ratio (Chan. 4) ref 1V, < 200Hz: dB	90
Remote Attenuation Range: dB	0 to -27
Frequency Response: Hz	20 – 22,000
Gain Range (Ch1, 2, 3, 4): dB	-30 to +4
Gain Range (Aux Input): dB	-65 to +18
Fuse: Amps	2
Width: in (cm)	10-1/2 (26.5)
Depth: in (cm)	5-3/4 (14.6)
Height: in (cm)	1-3/8 (3.5)

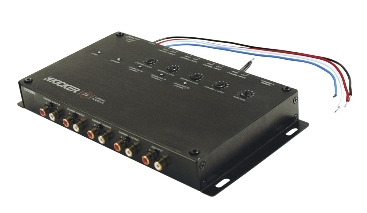

The KICKER® ZXSUM8™ Summing Interface provides complete integration of aftermarket audio products into a vehicle’s factory OE system, while adding a handy auxiliary-input jack for entertainment from portable media devices. It assists in upgrading a stereo system by feeding KICKER Amplifiers a well-balanced meal of beefy full-range audio without having to replace the source unit.

Specifically, the ZXSUM8 sums and balances multiple signals of varying frequency ranges from a factory system into a single full-bandwidth, line-level signal to drive aftermarket amplifiers with full force over the entire audio spectrum.

The interface features four stereo speaker-level inputs and four line-level stereo RCA outputs, and each stereo channel is internally capable of both summing and line-output conversion. Portable media devices such as iPods® or iPhones™ can be integrated into the mobile system with the addition of a stereo RCA aux-input.

A convenient remote handles multiple functions of the ZXSUM8, including the control of aux-input level and Channel-4 output to separately adjust bass and auxiliary levels from the same remote source.
