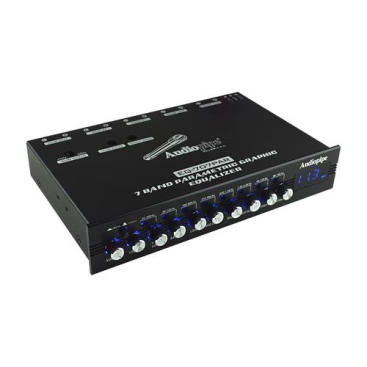

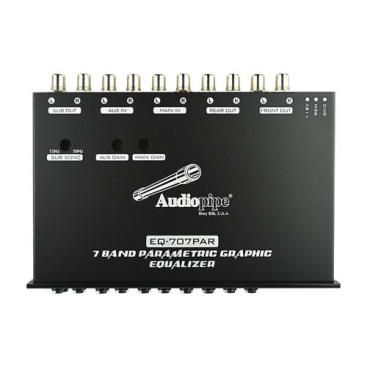

AUDIOPIPE 7-BAND PARAMETRIC GRAPHIC EQUALIZER – 9V LINE DRIVER W/ SUB OUTPUT

General Features:

• 7-Band Graphic Equalizer with subwoofer output
• Master and subwoofer volume control
• Subwoofer frequency and level control
• Left and right gain adjustments
• Signal-to-Noise Ratio: 130dB

• Frequency Response: 20-20,000 Hz
• Seven variable frequency bands
• ± 12dB boost/cut for each band
• LCD display shows frequency and voltage
• Independent subwoofer level control
• Variable 30-300Hz subwoofer low-pass filter
• Variable 15-50Hz 12dB subsonic filter
• 2 selectable balanced RCA inputs
• Independent channel gain controls
• Input selector switch & fade control
• Built-in 9V max line driver

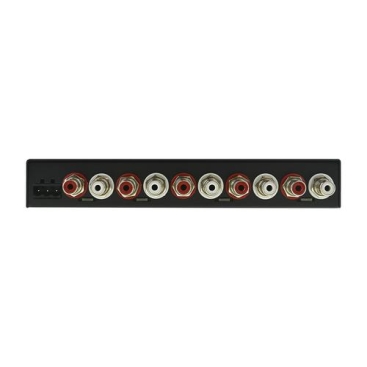

• Front, rear & subwoofer RCA outputs

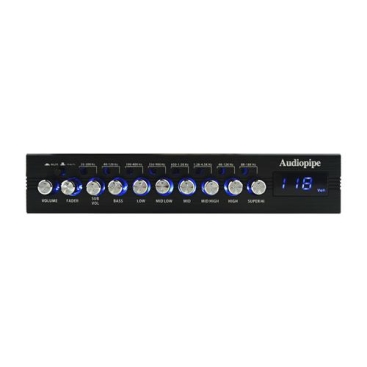

• Blue LED backlit control knobs
• S/N ratio: 90 dB
• THD: 0.03%

Product Specifications:

• Number of Bands: 7
• Input sensitivity: 200mV-3.5V
• Signal-to-noise ratio: 130dB
• Max output voltage: 9.75V
• Cut/Boost: +/-18dB
• Input impedance: 20k ohms
• Output impedance: 1000 ohms
• Frequency response: 20-20,000 Hz
• Subwoofer frequency: 60-90 Hz
