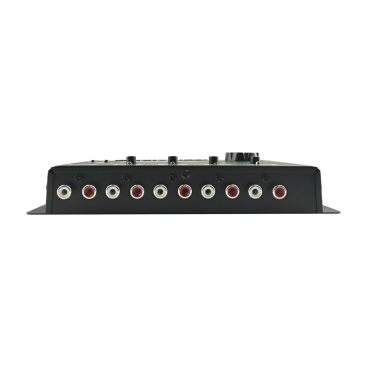

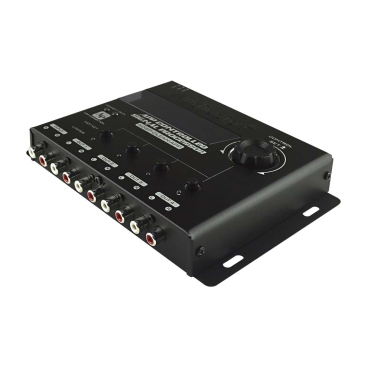

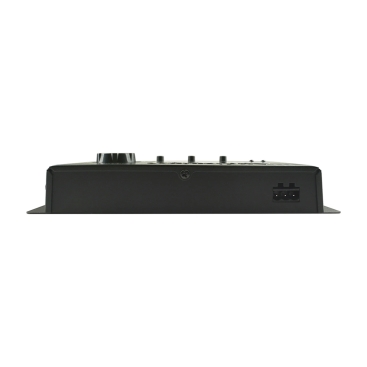

AUDIOPIPE 1-IN/4-OUT DIGITAL SIGNAL PROCESSOR – APP CONTROLLED

Mobile app controlled digital signal processor

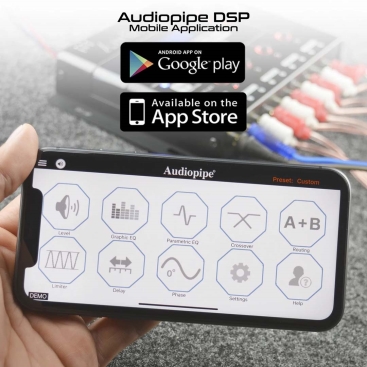

Increase the sound quality of your sound system through the use of optimized audio processing and achieve complete audio customization for application specific installations with real time signal processing for ultimate control and customization of your sound. Use the built-in knob or encoder with the lcd screen to adjust the settings or download the free audiopipe dsp mobile application on your ios or android device and connect via bluetooth to the audiopipe DSP App on your phone.

Features:

• Input and output processing
• 12 band graphic equalizer
• Tone generator
• Scroll Button for Simultaneous adjustments
• 32-bit Digital Audio Processor
• Precisely define the cutoff and attenuation frequencies
• Measures real-time battery voltage at push of a button
• Master mute function at the push of a button

Technical specifications:

• Inputs: 1 rca
• Outputs: 4 rca
• Input impedance: 10k
• Output impedance: 47 ohms
• Signal to noise ratio: >90db
• Total harmonic distortion (thd): <0.01%
• Channel separation: >80db
• Frequency response: 10hz – 22,000hz
• (w x h x d) 9″ x 2-3/8″ x 7-1/4″
