HIFONICS, COLOSSUS MINI ULTRA-COMPACT SUPER D CLASS 800 WATT FOUR CHANNEL AMPLIFIER

Specifications:

• Amp Class: Super D-Class®

• Amp Total Channels: 4

• Amp Max Power (watts): 800

• Amp Power @ 2 Ohms (ch x watts): 4 x 200

• Amp Power @ 4 Ohms (ch x watts): 4 x 100

• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 400

• Amp Crossover: Variable Electronic 12dB Per Octave

• Amp Variable High Pass Crossover 12dB per Octave: 15Hz-1KHz

• Amp Variable Low Pass Crossover 12dB per Octave: 30Hz-250Hz

• Amp Tone Control / Parametric EQ: Built-in Bass Control

• Amp Variable Voltage: 0.2-5V

• Amp Signal to Noise: > 85dB

• Amp Frequency Response: 10Hz-25kHz

• Amp Total Harmonic Distortion (THD): < 0.5%

• Amp Speaker Level Audio Inputs: Yes

• Amp Power Terminal 12v/GND: 4 AWG

• Amp Speaker Terminal Wire Gauge: 12 AWG

• Amp Fusing: External 80A

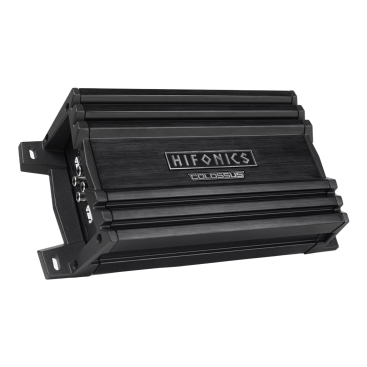

The compact Colossus Mini amplifier is designed for motorcycles, UTVs, and cars, featuring a mass-loaded aluminum heat sink for efficient cooling without fans. It includes a high-end preamplifier circuit for versatile input, nickel-plated RCA jacks for corrosion-resistant connections, and Ultra-Fi MOSFETS for high power and thermal dissipation. With a 4-channel operation mode, it supports both stereo and mono bridged configurations. The amplifier utilizes a clean, multi-layer PCB, Full Range Class-D chipset, and air core transformer for improved frequency efficiency. It has a delayed turn-on function to prevent noise issues, secure molded terminals for easy connections, and stylish CNC-machined badges. Triple protection circuits ensure safety, and the bass remote allows convenient bass level adjustments with LED indicators for power and protection status.
