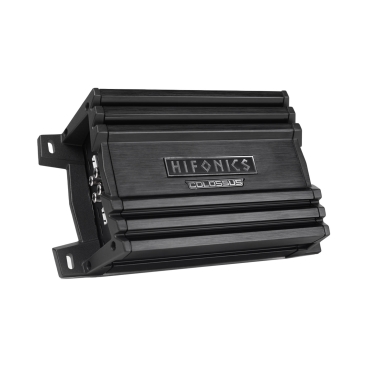

HIFONICS, COLOSSUS MINI ULTRA-COMPACT SUPER D CLASS 400 WATT FOUR CHANNEL AMPLIFIER

Specifications:

• Amp Class: Super D-Class®

• Amp Total Channels: 4

• Amp Max Power (watts): 400

• Amp Power @ 2 Ohms (ch x watts): 4 x 100

• Amp Power @ 4 Ohms (ch x watts): 4 x 50

• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 200

• Amp Crossover: Variable Electronic 12dB Per Octave

• Amp Variable High Pass Crossover 12dB per Octave: 15Hz-1KHz

• Amp Variable Low Pass Crossover 12dB per Octave: 30Hz-2.5KHz

• Amp Tone Control / Parametric EQ: Built-in Bass Control

• Amp Variable Voltage: 0.2-5V

• Amp Signal to Noise: > 85dB

• Amp Frequency Response: 10Hz-25kHz

• Amp Total Harmonic Distortion (THD): < 0.5%

• Amp Speaker Level Audio Inputs: Yes

• Amp Power Terminal 12v/GND: 4 AWG

• Amp Speaker Terminal Wire Gauge: 12 AWG

• Amp Fusing: External 40A

The Colossus Mini amplifier is designed for motorcycles, UTVs, and cars with a compact footprint. It features a mass-loaded aluminum heat sink for efficient cooling without fans. The high-end preamplifier circuit supports a wide range of input signals, and nickel-plated RCA jacks ensure reliable connections. Ultra-Fi MOSFETS provide high power and thermal management. It operates in a 4-channel mode, suitable for both stereo and mono bridged configurations. The clean multi-layer PCB design and Full Range Class-D chipset ensure compatibility with various drivers. An air core transformer enhances frequency efficiency, while the delayed turn-on function prevents noise. Secure molded terminals facilitate easy connections, and CNC-machined badges add a stylish touch. Triple protection circuits safeguard against voltage issues, short circuits, and overheating, and the bass remote with LED indicators allows for convenient bass adjustments.
