The SecurView™ SV-6922.LM.II is a mini lip-mount style camera that can be mounted in several different locations around the vehicle and remain out of sight. The outer shell is constructed of strong die-cast metal to allow it to stand up to the harsh weather elements and road debris and it also has a built-on flexible mounting bracket to allow the viewing angle to be adjusted easily. The camera lens has an ultra-wide 170° viewing angle to give the driver the all-around best view when backing-up the vehicle.
The SecurView™ SV-6922.LM is one of our most popular selling cameras in the SafetyPlus™ category. It is a mini lip-mount style camera that can be mounted in several different locations around the vehicle and remain out of sight.
The durable die-cast metal construction allows the camera to stand up to any weather elements or road debris and the small size makes it barely noticeable once it is installed on the vehicle. The wide 170° viewing angle allows the driver to keep an eye on anything behind the vehicle or inside the vehicle if you choose to use it on the interior. The wide viewing angle plus the small size make it a good choice to use with a DVR system for surveillance as well as safety. If the camera is going to be used on the exterior of the vehicle, there are optional parking lines to help the driver accurately judge the distance behind the vehicle. The parking lines can be turned on or off during installation.

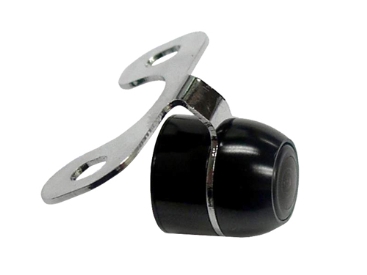

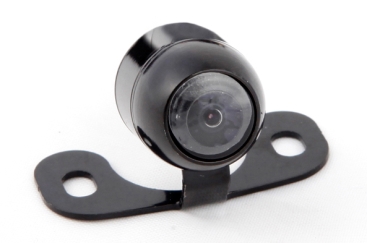

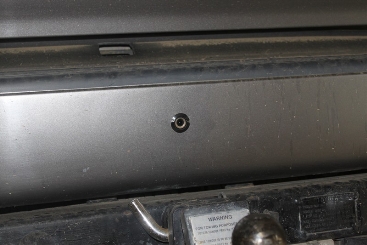

Right out of the box, the SV-6922.LM.II is setup to be use as a lip-mount camera using a small “Y” bracket for installation underneath a license plate bezel or anywhere on the front or rear bumper. However, the camera also includes the necessary hardware to convert it into a flush-mount camera to give you the ultimate clean look once the camera is installed.
-
Features:
- 170° Wide horizontal viewing angle
- Normal / reverse Image (Selectable)
- Parking assist lines (Selectable)
- Ultra-small and compact design makes it perfect for mounting almost anywhere on the vehicle
- Perfect for use on the interior of the vehicle with a DVR system

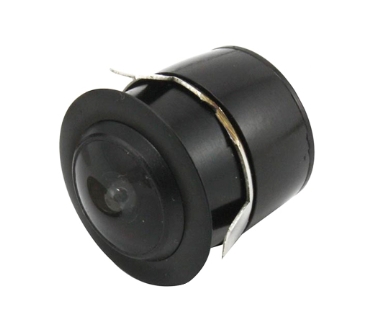

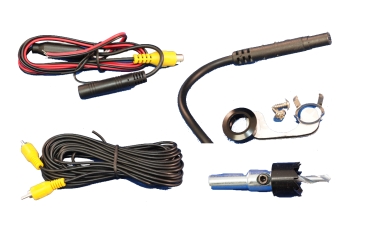

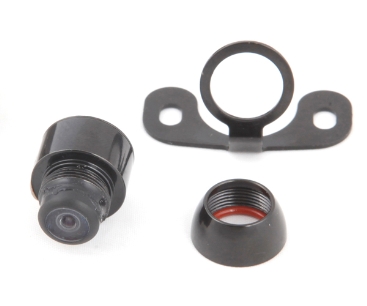

- Includes hardware to convert it from a lip-mount to a flush-mount camera
- Constructed of durable die-cast metal
- Waterproof design
SPECIFICATIONS
| Image Sensor: (?) | CMOS |
| Dimensions: (?) | ⅞”(L) × 1⅛”(W) × 1⅛”(D) |
| Resolution: (?) | 420 TV Lines / 656px(H) × 492px(V) |
| Minimum Illumination: (?) | 1 LUX / F1.2 |
| Horizontal Angle: (?) | 170° |
| Vertical Angle: (?) | 90° |
| TV System: (?) | NTSC / PAL |
| Video Output: (?) | RCA 1.0Vp-p Composite (75 Ohm load) |
| Power Source: (?) | DC 12V |
| Power Consumption: (?) | 70mA |
| Electronic Shutter: (?) | 1/50s – 1/100000s |
| Gamma Correction: (?) | 0.45 |
| Operating Temperature: (?) | -25°F – 185°F (-20°C – 85°C) |
| Waterproof: (?) | IP67 – IP68 |
| Normal / Reverse Image: (?) | Yes (Selectable) |
| Parking Lines: (?) | Yes (Selectable) |
| Camera Cable Length: (?) | 3 Ft |
| Power Cable Length: (?) | 16 Ft |
| Video Cable Length: (?) | 3½ Ft |
