AXXESS, CAMERA DATA INTERFACE WITH PRE-WIRED HARNESS – FITS SELECT JEEP/RAM MODELS 2023-UP

Specifications:

• Add multiple CAN-activated cameras with 4 camera inputs

• Programmable 12-volt 5-amp switched output (configured through the Axxess Updater program)

• Reverse signal trigger generated via CAN bus communication of the vehicle

• Turn signal trigger generated via CAN bus communication of the vehicle

• 1 programmable camera control wire (configured through the Axxess Updater program)

• Can also be manually controlled and used along with an aftermarket radio

• VSS (Vehicle Speed Sense) input and output

• Micro “B” USB updatable

Vehicle Applications:​

• Dodge: Durango with Uconnect® 5 2023-Up (10.1 inch touchscreen)

• Jeep: Wrangler with Uconnect® 5 2023-Up (12.3 inch touchscreen)

• Ram with Uconnect® 5 2023-Up (12.0 inch touchscreen)

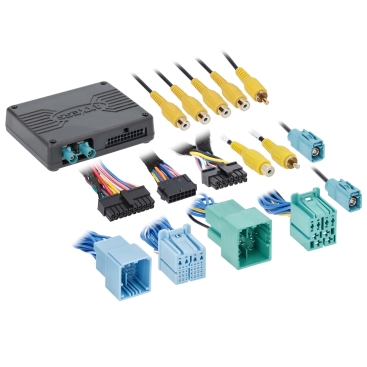

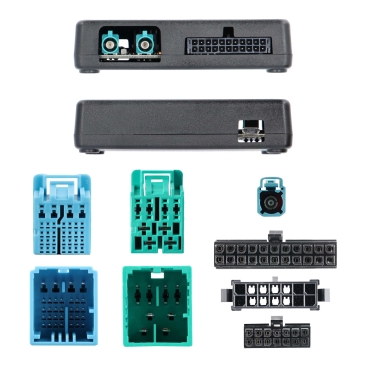

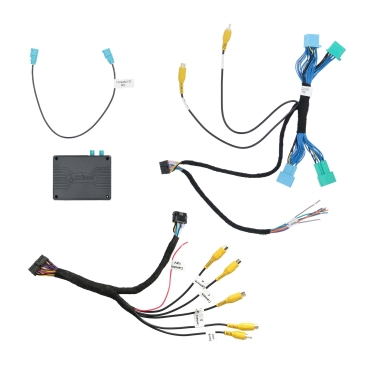

Looking to add a backup camera or any CAN-activated camera to your factory radio screen? Axxess offers a plug-n-play interface, AXAC, for select vehicle applications that allow you to add up to 4 CAN-activated cameras. The AXAC package includes the interface and vehicle-specific harness. Check our Vehicle Fit Guide to see if an AXSC is available for your vehicle, as these products are dependent on the vehicle application.
