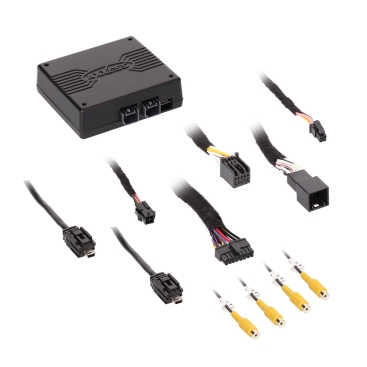

AXXESS 8”GM LVDS CAMERA SWITCHING INTERFACE – CHEVROLET / GMC 2014-2019

Adding multiple cameras to the factory screen is no longer an issue. This LVDS camera switching interface is intended for use on 8” factory screens to enable a single camera input or add up to 4 cameras. This interface can be programmed to automatically activate the camera inputs based on turn signal or reverse triggers via the vehicle’s CAN Bus communication. The Rear Video Assistant (RVA) option can be used to keep a camera active during the duration of a trip, allowing the driver to monitor a trailer hitch, baby in the backseat, or rear cargo.

Specifications:

• LVDS camera switching interface
• (4) Camera inputs
• Reverse signal trigger generated via CAN Bus communication of the vehicle
• Turn signal trigger generated via CAN Bus communication of the vehicle
• Rear Video Assistant (RVA) option can be used to keep a camera active
• (1) Programmable camera control wire
• Micro “B” USB updatable

Vehicle applications:

• Chevrolet (RPO IO5/IO6)
  • Colorado 2015-2019
  • Silverado 2014-2019
  • Silverado 2500/3500 2019
  • Suburban 2015-2019
  • Tahoe 2015-2019

• GMC (RPO IO5/IO6)
  • Canyon 2015-2018
  • Sierra 2014-2018
  • Sierra Limited 2019
  • Yukon/XL 2015-2019
