AXXESS, MERCEDES GL/ML/SLK/E-CLASS W/ MOST25 AMP – SWC RETENTION 06-

Specifications:

• Provides accessory power
• Retains R.A.P. (retained accessory power)
• Designed for amplified models
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering whel
• Retains balance
• Micro-B USB updatable

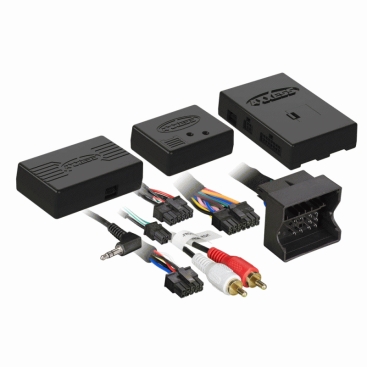

Interface Components

• AXDIS-MB2 harness
• AXDIS-MB82 interface
• AXDIS-MB82 amplifier interface
• AXSWC harness
• AXSWC interface
• Female 3.5mm connector with stripped leads

Applications:

Mercedes:

• E-Class 2009 (W211)*
• GL 2007-2012 (X164)
• ML 2006-2011 (W164)
• SLK 2005-2011 (R171)*

*There are two different radio possibilities for the E-Class or SLK in this year range, please see below for ways to distinguish between which interfaec kit you will need.

*Vehicles equipped with Command NTG1 will use the AXDIS-MB132. NTG1 radios will be built by Harman/Becker and have the 6-Disc Changer separate from the radio, if equipped with a SINGLE-disc player, it will be built in to the radio. They will typically have buttons on the sides of, and below the radio screen, also the optical light will come from the fiber cable when removed.

*Vehicles equipped with Command NTG2.5 will use the AXDIS-MB82. NTG2.5 radios will be built by Alpine, and have the 6-Disc changer built in to the radio. They will not have buttons directly below the radio screen, and the optical light will come from the radio when the fiber cable is removed.
