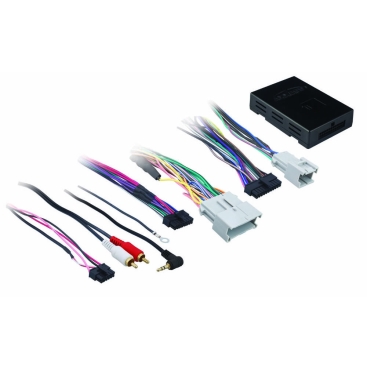

AXXESS CLASS-2 DATA INTERFACE FOR GM 2000-2013

Specifications:

• Provides accessory power (12-volt 10-amp)
• Maintains the retained accessory power (R.A.P.) feature
• Can be used in non-amplified, or analog/digital amplified models
• Retains warning chimes
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired ASWC-1 harness (ASWC-1 sold separately)
• Retains OnStar/OE Bluetooth
• Adjustable volume for chimes and OnStar
• Retains balance and fade (1)
• Retains RSE (rear seat entertainment) (2)
• Retains SAT (satellite radio)
• Micro “B” USB updatable

(1) Excluding digital amplified models

(2) Only for models that have the RSE controlled through the factory radio. Not for models that have an external power button at the RSE.

Applications:

• Buick
• Century 2004-2005
• Lacrosse 2005-2009
• Rainier 2005-2007
• Rainier 2004 (1)
• Regal 2004
• Rendezvous 2002-2007
• Terraza 2005-2007

• Cadillac
• Escalade 2003-2006 (2)
• Escalade ESV 2003-2006
• Escalade EXT 2003-2006

• Chevrolet
• Avalanche 2003-2006 (1)
• Cavalier 2000-2005
• Colorado 2004-2012
• Corvette 2005-2013
• Express 2003-2007
• Impala 2000-2005
• Kodiak 2003-2009
• Malibu 2001-2003
• Malibu Classic 2004-2005
• Monte Carlo 2000-2005
• Silverado Classic 2007 (1)
• Silverado 2003-2006 (1)
• SSR 2003-2006 (1)
• Suburban 2003-2006 (1)
• Tahoe 2003-2006 (1)
• Trailblazer 2007-2009
• Trailblazer 2002-2006 (1)
• Uplander 2005-2008

• GMC
• Canyon 2004-2012
• Envoy 2007-2009
• Envoy 2002-2006 (1)
• Savanna 2003-2007
• Sierra Classic 2007 (1)
• Sierra 2003-2006 (1)
• TopKick 2005-2009
• Yukon 2003-2006 (1)

• Hummer
• H2 2003-2007 (2)
• H3/H3T 2006-2010

• Isuzu
• Ascender 2003-2008
• H Series 2003-2008
• I Series pickUps 2006-2008

• Oldsmobile
• Alero 2001-2004
• Bravada 2002-2004 (1)
• Intrigue 2002

• Pontiac
• Aztec 2001-2005
• Grand Am 2001-2005
• Grand Prix 2004-2008
• Montana SV6 2005-2008
• Sunfire 2000-2005

• SAAB
• 9-7× 2005-2009

• Saturn
• Relay 2005-2007

(1) These vehicles have a digital amplifier option. Please refer to the Service Parts Identification sticker located in the glove box (for all models except for the Buick Regal which is on the spare tire cover). If the codes UQA or Y91 are present then you have a digital amplifier.

(2) These vehicles come standard with a digital amplifier.
