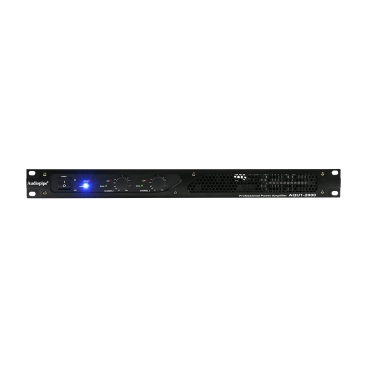

AUDIOPIPE, PROFESSIONAL POWER AMPLIFIER, STEREO INTO ( 4 OHMS ): 200W STEREO INTO (8 OHMS ): 130W

Specifications:

• Power Specifications

  • Stereo Into ( 4 Ohms ): 200W



  • Stereo Into (8 Ohms ): 130W



  • Input sensitivity: 0.77V



  • Input impedance: 10k Ohms balanced



  • Frequency response (at 10dB below rated output power): 25Hz-25KHz +0/-1dB -3dB points: 5Hz – 50KHz



  • Distortion (SMPTE – 1M): <0.03%



  • S/N Ratio: 100dB

• General Specifications

  • Protections: Full short circuit, open circuit, thermal, ultrasonic, and RF Protection; stable into reactive or mismatched loads ON/OFF muting; current limiter

  • Controls: Front: Power switch, 41 detent input level control for each channel Indicators:

  • Signal: 4 x Green LED

    • Clipping: 4 x RED LED
    • Protect: 4 x RED LED
    • Power On: 1 x Blue LED

• CONNECTORS

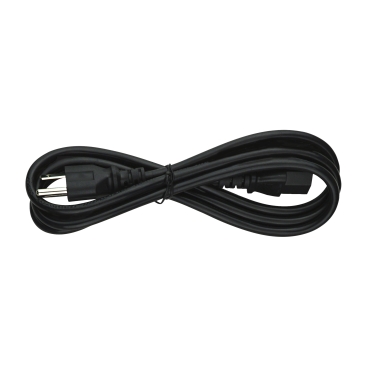

  • Power: ICE power cord



  • Input: ¼” (6.3mm) TRS



  • Output: Speak-On



  • Power Supply: Voltage selectable: 115V AC 60Hz 230V AC 50Hz



  • Fuse (250V): AC 115V: T6.3A/250V; AC 230V: T3.15A/250V



  • Dimensions (W x H x D ): 482 x 45 x 320mm ( 19.0” x 1.77” x 12.6” )

  ​
