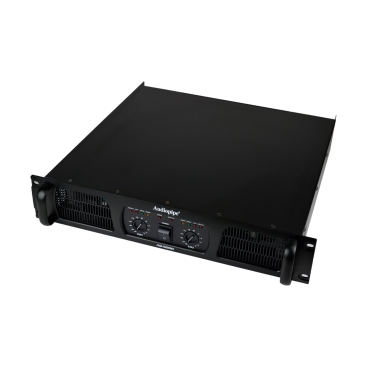

AUDIOPIPE, PROFESSIONAL POWER AMPLIFIER, BRIDGEABLE 2300 WATTS MAX

Specifications:

• Out Power ( 8 Ohm): 2 x 600W

• Out Power ( 4 Ohm): 2 x 1050W

• Out Power ( 2 Ohm): 2 x 1400W

• Out Power ( BRIDGE ) ( 8 Ohm): 1750W

• Out Power ( BRIDGE ) ( 4 Ohm): 2300W

• Frequency Response @ Half Pwr: 15Hz-25KHz (+0/-1dB)

• THD + Noise @ 1KHz Full Pwr: <0.03%

• IMD 60Hz & 7KHz, 4:1: < 0.038%

• Signal to Noise Ratio: > 102Db

• Slew Rate (input filter limited): 40V/Us

• Damping factor 1KHz, 4:1: < 0.038%

• Input Sensitivity: Selectable (0.77V / 1.0V / 1.44V)

• Input Impedance: 10K Ohm Balance to ground

• Input Connectors: Female XLR-3 & 6.35mm TRS Jack

• Output Circuit Type: Class AB

• Output Connectors: 4 Pole Speakon & Binding Post

• Protections: Full short-circuit, Open-circuit, Thermal, Soft-

• start, DC Voltage, Sub/Ultrasonic and RF

• LED Indicators (per channel): Bridge, Parallel, Power, Signal, Clip, Protect

• Panel controls: Front-2 input attenuators Rear-Ground lift,

• mode selection, Compressor

• Cooling: Front-to-Back via 2 variable-speed fans

• Power supply voltage: 110V AC/60Hz

• Power supply Fuse (250): 12A

• Dimensions: 19.0” x 17.3” x 5.2”

• Weight: 55.1 lbs
