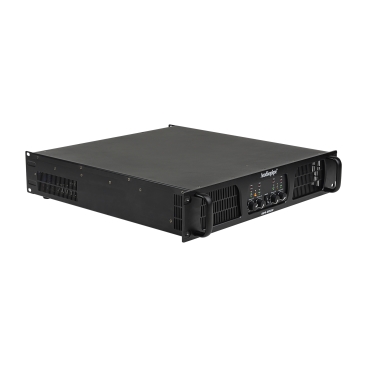

AUDIOPIPE, PROFESSIONAL POWER AMPLIFIER, 4 X 1000W @ 8 OHMS, 4 X 1500W @ 4 OHMS

Specifications:

• Stereo Mode ( both cannels driver )

  • 8 Ohms/RMS 1kHz/1% THD: 4 x 1000W
  • 4 Ohms/RMS 1kHz/1% THD: 4 x 1500W
  • 2 Ohms/RMS 1kHz/1% THD: Not Recomendable

• Bridge Mono Mode
  • 8 Ohms/EIA 1 kHz/1%  THD: 2 x 3000W
  • 4 Ohms**/EIA 1 kHz/1% THD: 2 x 4000W (Not Recommendable)

• Bridge Mono Mode
  • 8 Ohms/EIA 1 kHz/1% THD: 2 x 3000W
  • 4 Ohms**/EIA 1 kHz/1% THD: 2 x 4000W (Not Recommendable)

• Maximum Distortion ( 8 ohms, 20-20kHz, 1dB below rated power): 0.2%
• Frequency Response ( 8 ohms, 20-20kHz, +/-0.5dB.
• S/N rate ( 20Hz-20Hz): 95 dB
• Damping Factor (8 ohms): >700
• Output Circuit Type: Class – TD
• Input Sensitivity: 1.0V, 1.4V, 2.0V
• Input Impedance: >10k ohms, balanced or unbalanced.
• Front Panel: Power switch (Push on/Push off),
• Two Volume control knobs (one per ch)
• Indicators: POWER (4 x Green), SIGNAL (4 X Green), CLIP (2 x Red), PROTECTION (4 x Red)

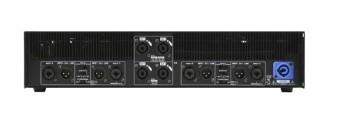

• Output Connectors: Speak- On (one per ch)
• Input Connectors: (Each channel):Male XLR, Female XLR
• ​ Amplifier and Load Protection:

  • Short circuit

  • open circuit

  • thermal

  • RF protection

  • ON/OFF muting, DC fault shutdown, active inrush limiting

• Dimensions (W x H x D): 483 x 88 x463mm (19.0″ x 3.46″ 18.2″)
• Weight: 13.8Kg (30.4 lbs)
