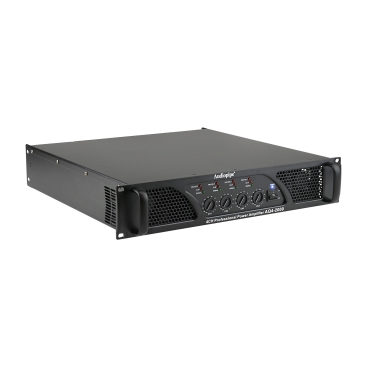

AUDIOPIPE, PROFESSIONAL POWER AMPLIFIER, 4-CHANNEL BRIDGEABLE 4 OR 8 OHMS, 1480 WATTS

Specifications:

• Power Output

  • Channel 1 & 2 & 3 & 4 (8 Ohms): 4 x 250W

  • Channel 1 & 2 & 3 & 4 (4 Ohms): 4 x 370W

  • Damping Factor (20Hz – 400Hz @ 8 Ohms): > 250

  • Slew Rate ( 1KHz @ 2 X 4 Ohms): 6.5V / uS

• Frequency Response:

  • 10Hz – 50KHz (-2 dB)

  • THD + Noise: 0.1%

  • S/N Ratio: – 86 dBm

  • Noise Floor: 3 mV

  • Total Gain: 40 Db

• Amplifier Protection:

  • Four Variable speed fans for cooling;

  • Power On/ Off relay;

  • RF protection;

  • DC offset protection circuits;

  • Thermal overload protection;

  • short circuit protection  ​

​Input Section:

• Power Output

  • Input Impedance balanced / unbalanced: 40K Ohms/20K Ohms
  • Sensitivity ( level control set to max)

  • Balanced / unbalanced: -3.8 dBm, 500 mV/ +2.2 dBm, 1V

  • Max Input Level (level control set to Mid): > 5V, +16.2 dBm

    ​

• LED

  • Signal: 4 x Green LED

  • Clipping: 4 x Red LED

  • Protect: 4 x Red LED

  • Power On: 1 x Blue LED

• Power Requirements: 110V AC/ 60Hz

  • Fuse Requirements: F15A 220V

  • Weight:20kg (45.2lbs)

  • Dimensions (W x H x D): 483 x 88.8 x 436mm (19.0” x 3.5” x 17.2”)
