SOUNDSTREAM PICASSO NANO 4-CH MINI AMP 520 WATTS, CLASS D FULL RANGE

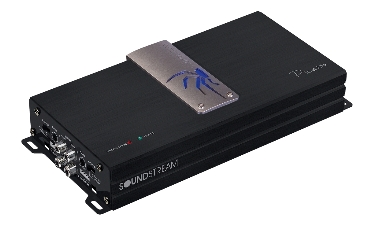

Picasso Nano – Mini Amplifier

Class D Full Range 4 Channel

100W x 4 RMS @ 4 Ohm

130W x 4 RMS @ 2 Ohm

260W x 2 RMS @ 4 ohm bridged

Dimensions: 4.75″ W x 1.5″ H x 9″ L

• Small Compact 4.75″ Wide Chassis
• 4-ohm Bridged/2-ohm Stereo

  Class D Full Range

• MOSFET PWM Power Supply
• 80Hz 12dB HP or LP Crossover (2/4 ch.)
• 200mv-6V Low Level Input Sensitivity
• High Level Input

OWNER’S GUIDE
