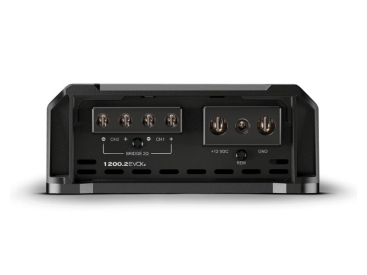

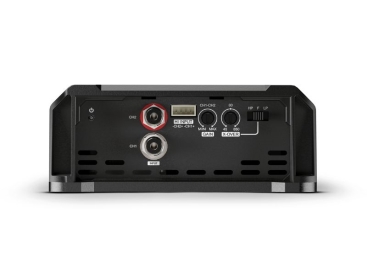

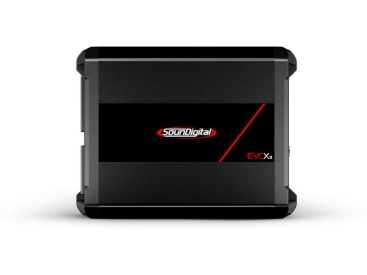

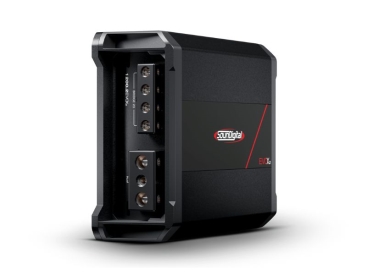

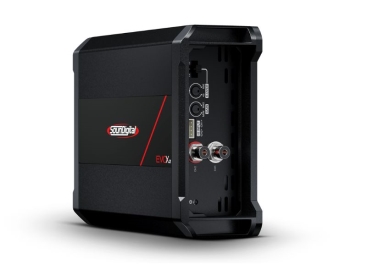

SOUNDIGITAL, EVOX2 1200.2 2-CHANNEL 4 OHM AMPLIFIER 1200W RMS BRIDGE POWER & ADJUSTABLE CROSSOVERS

Specifications:

• Power @ 1Ω: N/A

• Power @ 2Ω: 2 x 600 WRMS

• Power @ 4Ω: 2 x 396 WRMS

• Bridge Power @ 2Ω: N/A

• Bridge Power @ 4Ω: 1 x 1200 WRMS
• Frequency Response (-3dB): 5Hz – 22kHz

• Low Pass Filter: 45Hz ~ 850Hz

• High Pass Filter: 45Hz ~ 850Hz

• Operating Voltage: 8V ~ 16V

• SNR: 2Ω: 88 dB & 4Ω: 90 dB

• Input Sensitivity: 0.2V ~ 4V

• Current Draw (Music): 47A

• Current Draw With Resistive Load: 94A

• Total Efficiency: 88%

• Damping Factor: 200

• Power Cable: 16mm² (5 AWG)

• Audio Output Cable: 2 x 2.5²mm (13AWG)

• Recommended Fuse (Music): 60A

• Recommended Battery (Minimum): 70Ah

• Width: 5.4 in / 13,6 cm

• Length: 7.1 in / 18,1 cm

• Height: 2.2 in / 5,5 cm

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
