SIRIUSXM COMMANDER TOUCH TUNER, COLOR TOUCH SCREEN
Login see prices
Color Display, Includes: Touch Screen Color Display Controller, AUX cable & FM direct adapter FMDA25, Mounting kit, antenna, harness,
Add Satellite Radio with advanced features and a dash-mounted, fully integrated look to any car stereo.
- Enjoy SiriusXM through your vehicle’s in-dash audio system* with controls on the color touchscreen display. Connects through FM radio with included FM Direct adapter FMDA25 or AUX In. AUX in cable also included.

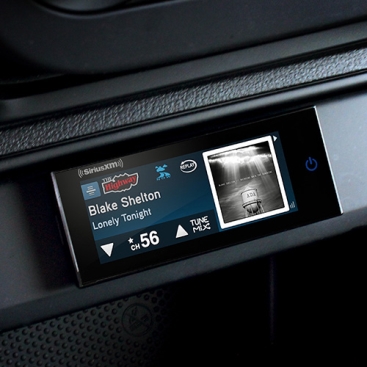

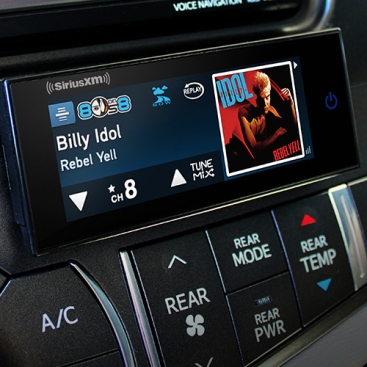

- Compact touchscreen controller mounts directly to your dash, and the tuner hides discreetly behind the dash for a fully integrated look with no/minimal visible wires
- Full-color display with album art, artist name, song title, channel logos and program information
- Pause, Rewind and Replay live Satellite Radio
- Automatically start songs from the beginning on your favorite channels with TuneStart™
- Use TuneMix™ to hear a mix of songs from your favorite channels
- Keep moving with the most current updates using Traffic & Weather Now™
- Connects to any radio with either an AUX input or FM connection
- Can be updated by a USB flash drive (not included) to add new features and capabilities as they become available.
- Professional installation recommended for best results

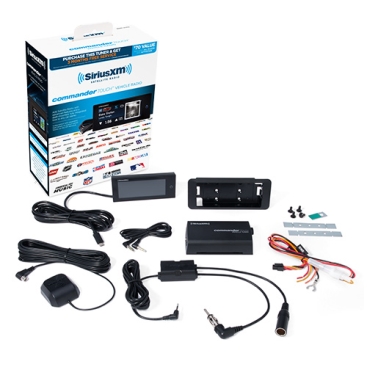

What’s Included In Box

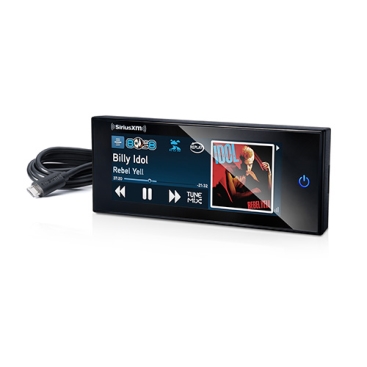

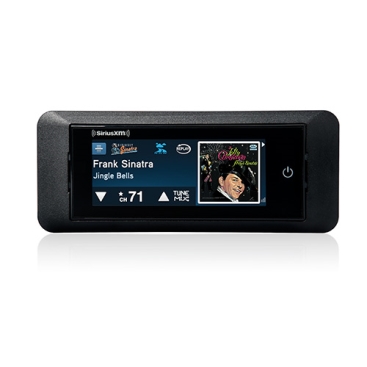

- Touchscreen Display Controller

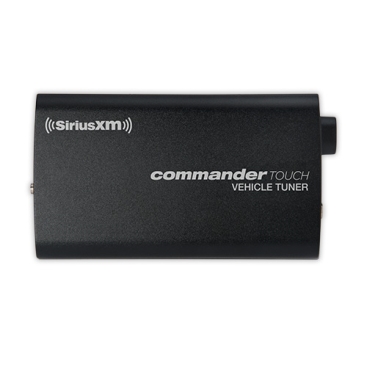

- Hideaway Tuner Module
- Flush kit & Mounting Hardware
- Vehicle Antenna
- Power Harness
- AUX Audio Output Cable
- FM Direct Adapter (FMDA25)
- Quick Start Guide
Specifications
| SVXCT1-DISP – Touchscreen Display controller | |
| Type: | Full Color LCD |
| Resolution: | 480 x 180 px |
| Input operation: | Capacitive Touch (single point) |
| Dimensions: | 4.1 in (width) x 1.69 in (height) x 0.48 in (depth) |
| 105 mm (width) x 43 mm (height) x 12.3 mm (depth) | |
| Weight: | 3.88 oz (110 g) |
| Cable Length: | 6.56 ft (2 m) |
| SXVCT1-TUN – Hideaway Tuner Module | |
| Connections: | Power, Display, Antenna, FM Out, AUX Audio Out |
| Dimensions: | 3.99 in (width) x 2.23 in (height) x 0.89 in (depth) |
| 101.5 mm (width) x 56.5 mm (height) x 22.7 mm (depth) | |
| Weight: | 2.5 oz (71 g) |
| FMDA25 – FM Direct Antenna Adapter | |
| Satellite Radio FM Cable Length: | 6 ft (1.82 m) |
| FM Radio Plug – Motorola (Male) length: | 8 in (203 mm) |
| FM Antenna Jack Motorola (Female) length: | 8 in (203 mm) |
| Weight: | 2.1 oz (60 g) |
| AUX Audio Cable | |
| Connectors: | 3.5mm/3.5mm Stereo (right-angle) |
| Vehicle Antenna | |
| Type: | SiriusXM Magnetic Mount |
| Cable Length: | 23 ft (7 m) |
| Dimensions: | 1.57 in (width) x 1.81 in (height) x 0.61 in (depth) |
| 39.9 mm (width) x 46.0 mm (height) x 15.5 mm (depth) | |
| Weight: | 3.3 oz (94 g) |
| Power Harness | |
| Wires: | B+ (Yellow), ACC (Red), Grn (Black), Ill (Orange) In line fuse (B+ Line): 4 A (AGC Type) |
| Length: | 19.7 in (0.5 m) |
| Weight: | 0.8 oz (13 g) |
| Display Flush Mounting Kit | |
| Dimensions(outer): | 5.3 in (width) x 2.17 in (height) x 0.77 in (depth) |
| 135 mm (width) x 55 mm (height) x 19.6 mm (depth) | |
| Dimensions(cut out): | 4.33 in (width) x 1.89 in (height) |
| 110 mm (width) x 48 mm (height) | |
| Weight: | 1.6 oz (44 g) |
| Includes: | M4x8 Screws (x4), brackets (x2), removal tool (x1) |
| Operational | |
| Input: | 11~16 v DC (12 v nominal) |
| Input current: | 2 A MAX |
| AUX Audio Out level: | 0.1~ 2.0 Vrms peak (7 steps) |
| Operational Temperature: | -4°F to +158°F (-20°C to +70°C) |
| Specifications are subject to change without notice | |
