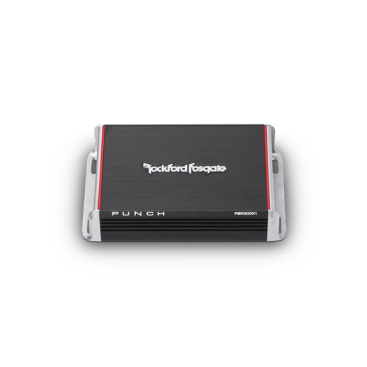

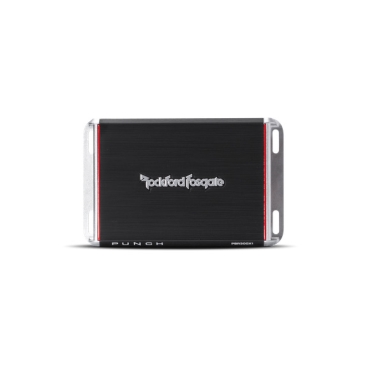

ROCKFORD FOSGATE, PUNCH 300 WATT MONO AMPLIFIER, COMPACT CHASSIS

Specifications:

• Cta-2006 Compliant
• Number of Channels
  • 1
• Total Power (Sum of Rated Power)
  • 300 Watts
• Rated Power (RMS Continuous Power)
  • 75 Watts x 1 @ 4-Ohm
  • 150 Watts x 1 @ 2-Ohm
  • 300 Watts x 1 @ 1-Ohm
• Dynamic Power (PVC/PowerCube®)
  • 96 Watts x 1 @ 4-Ohm
  • 189 Watts x 1 @ 2-Ohm
  • 326 Watts x 1 @ 1-Ohm
• Bridgeable
  • No
• Frequency Response
  • 20Hz – 250Hz +/-3dB
• Input Sensitivity
  • Low-Level: 150 mV – 4 V
  • High-Level: 400 mV – 11 V
• Circuit Topology Class
  • Class BR
• Efficiency (average)
  • 75% @ 4-Ohm
  • 75% @ 2-Ohm
  • 75% @ 1-Ohm
• Total Harmonic Distortion (THD+Noise)
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
• Signal Input
  • High/Low Input Switch
  • High/Low Level Input: 4-Pin harness
  • Hi-Level Sensitivity: Variable DC offset sensitivity
• Tone Controls
  • External via Optional Punch EQ
• Crossover Controls
  • Low-Pass: 35Hz – 250Hz @ 12dB/Octave Butterworth
• Remote Controls
  • Optional PEQ provides 0dB to +18dB @ 45Hz
• Visual Indicators
  • Power/Protect, BRT (Boost)
• Power Wire Gauge
  • 10 AWG
• Power Input Connector
  • Detachable Compression Terminal
• Speaker Wire Gauge
  • 16 AWG
• Speaker Output Connector
  • 4-Pin Harness Wiring Convenience: 2 Negative
  • Terminals (-) 2 Positive Terminals (+)
• Cooling
  • Convection
• Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 30 A
• Average Current Draw (13.8V Music)
  • 15 A
• Max. Current Draw (13.8V Sinewave)
  • 30 A
• Suggested Alternator
  • 75 A
