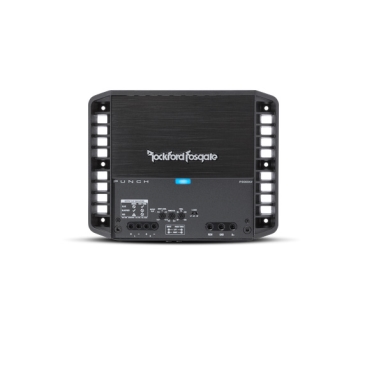

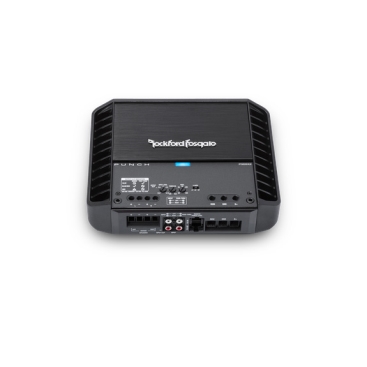

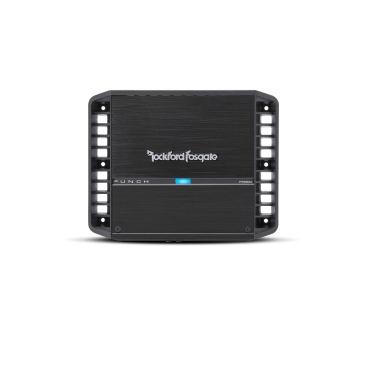

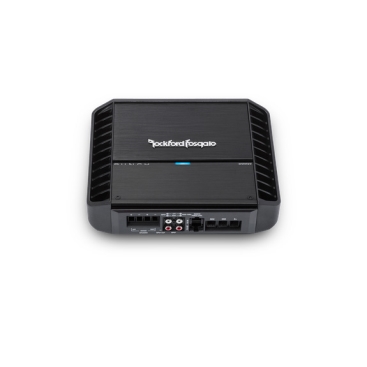

ROCKFORD FOSGATE, PUNCH 300 WATT 2-CHANNEL AMPLIFIER

Specifications:

• Number of Channels:
  • 2
• Total Power (Sum of Rated Power)
  • 300 Watts
• Rated Power (RMS Continuous Power) :
  • 100 Watts x 2 @ 4-Ohm
  • 150 Watts x 2 @ 2-Ohm
  • 300 Watts x 1 @ 4-Ohm Bridged
• Dynamic Power (PVC/PowerCube®) :
  • 120 Watts x 2 @ 4-Ohms 0° Res
  • 203 Watts x 2 @ 2-Ohms 0° Res
• Bridgeable
  • Yes
• Frequency Response
  • 20Hz-20kHz
• Input Sensitivity
  • 150 mV – 12 V
• Circuit Topology Class
  • Class A/B
• Efficiency (average)
  • 69% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise)
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
• Signal Input
  • Hi/Low Level: 1 RCA Pair
• Signal Output
  • Low Level: 1 RCA Pair
• Tone Controls
  • 0dB to +14dB @ 12.5kHz
  • 0dB to +18dB @ 45Hz
• Crossover Controls
  • High-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
  • Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
  • All-Pass: Yes
• Remote Controls
  • Optional Punch Level Control (PLC2) Ready
• Visual Indicators
  • Power/Protect/Thermal LED
  • Input Clip LED³
  • Output Clip LED^1,2,3
  • LED Color Legend:
  • ¹BLUE: <0.5% THD
  • ²VIOLET: 1% THD
  • ³RED: 10%+ THD
• Power Wire Gauge
  • 8 AWG to 4 AWG
• Power Input Connector
  • Captive C-Clamp
• Speaker Wire Gauge
  • 8 AWG to 18 AWG
• Speaker Output Connector
  • Captive C-Clamp
• Cooling
  • Convection
• Heatsink Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 50 A
• Average Current Draw (13.8V Music)
  • 23 A
• Max. Current Draw (13.8V Sinewave)
  • 45 A
• Suggested Alternator
  • 75 A
