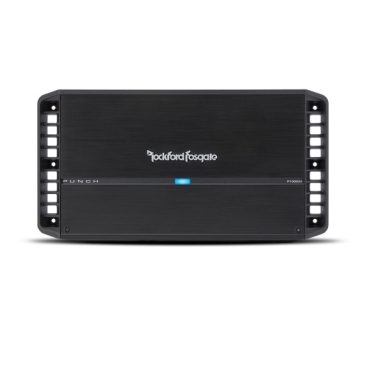

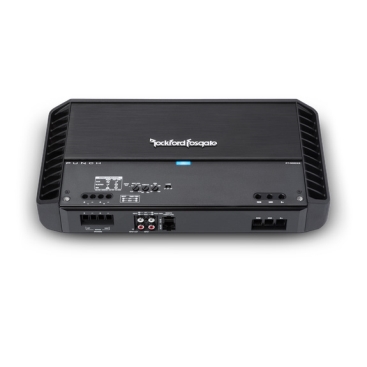

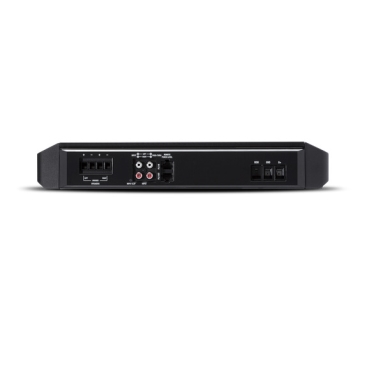

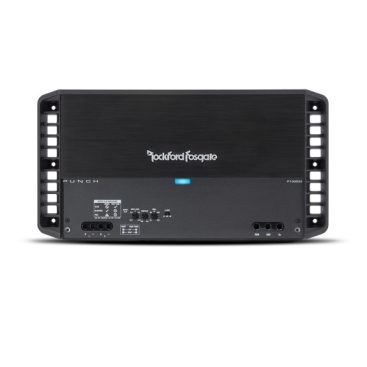

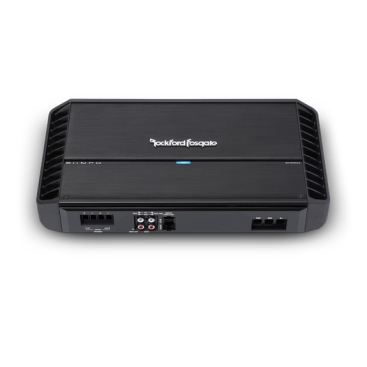

ROCKFORD FOSGATE, PUNCH 1,000 WATT 2-CHANNEL AMPLIFIER

Specifications:

• Cta-2006 Compliant
• Number of Channels
  • 2
• Total Power (Sum of Rated Power)
  • 1000 Watts RMS
• Rated Power (RMS Continuous Power)
  • 300 Watts x 2 @ 4-Ohm
  • 500 Watts x 2 @ 2-Ohm
  • 1000 Watts x 1 @ 4-Ohm Bridged
• Dynamic Power (PVC/PowerCube®)
  • 401 Watts x 2 @ 4-Ohms 0° Res
  • 656 Watts x 2 @ 2-Ohms 0° Res
• Bridgeable
  • Yes
• Frequency Response
  • 20Hz to 20kHz +/- 1.0dB
• Input Sensitivity
  • 150 mV – 12 V
• Circuit Topology Class
  • Class A/B
• Efficiency (average)
  • 69% @ 4-Ohm
  • 64% @ 2-Ohm
• Total Harmonic Distortion (THD+Noise)
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
• Signal Input
  • Hi/Low level: 1 RCA pair
• Signal Output
  • Low level: 1 RCA pair
• Tone Controls
  • Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
  • Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
  • Function depends upon LP/AP/HP switch position
• Crossover Controls
  • High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
• Remote Controls
  • Optional Punch Level Control (PLC2) Ready
• Visual Indicators
  • Power/Protect/Thermal LED
  • Input Clip LED³
  • Output Clip LED^1,2,3 LED Color Legend:
  • ¹BLUE: <0.5% THD
  • ²VIOLET: 1% THD
  • ³RED: 10%+ THD
• Power Wire Gauge
  • 4 AWG
• Power Input Connector
  • Captive C-Clamp
• Speaker Wire Gauge
  • 8 AWG to 18 AWG
• Speaker Output Connector
  • Captive C-Clamp
• Cooling
  • Convection
• Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 140 A
• Average Current Draw (13.8V Music)
  • 70 A
• Max. Current Draw (13.8V Sinewave)
  • 140 A
• Suggested Alternator
  • 100 A
