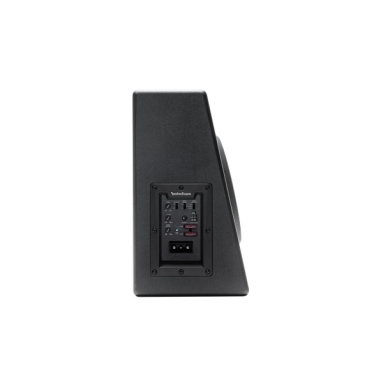

ROCKFORD FOSGATE, PUNCH 10″ 300-WATT POWERED TRUCK SEALED ENCLOSURE

Specifications

• CEA-2031 Compliant
• CEA-2006 Compliant
• Woofer Quantity
  • 1
• Woofer Size
  • 10″
• Woofer Series
  • Proprietary
• Frequency Response
  • 25 Hz to 200 Hz
• Power Handling (Watts RMS)
  • 300 Watts RMS
• Enclosure Type
  • Sealed
• Enclosure Material
  • 5/8″ MDF (Medium Density Fiberboard
• Integrated Amplifier
  • 300 Watts RMS
• Crossover Controls
  • Variable 50 Hz to 200 Hz
  • 12dB/Octave Butterworth
• Tone Controls
  • Bass Boost 0 dB to +12 dB;
• Phase Control
  • 0° to 180°
• Remote Control
  • Punch Level Control (Included)
• Auto Turn-On Selector
  • Remote Trigger
  • DC Offset Sense
  • Audio Sense
• Input Switch
  • High-Level (Speaker Line)
  • Low-Level (RCA)
• Signal Input
  • Low/High-Level: 1 RCA Pair (L/R Summed)
• Input Sensitivity
  • Low-Level: 150 mV to 6 V
  • High-Level: 300 mV to 12 V
• Input Impedance
  • 20k Ohms
• Power Input Connector
  • Quick Disconnect
• Power Wire Gauge
  • B+/GND: 8 AWG REM: 18 AWG
• Circuit Topology Class
  • Class-D
• Heatsink Type
  • Extruded Aluminum
• Cooling
  • Convection
• Visual Indicators
  • Power/Protect LED
• Fuses
  • 20 Amp (2 x 10 Amp ATO Fuse)
• Dimensions Box H x W x D Wedge H x W x D1 x D2
  • 13.3″ x 21.7″ x 4.8″ x 7.9″
  • 338 mm x 552 mm x 122 mm x 201 mm
