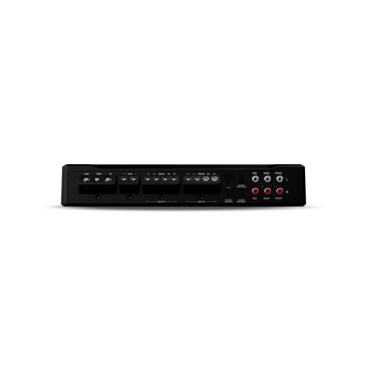

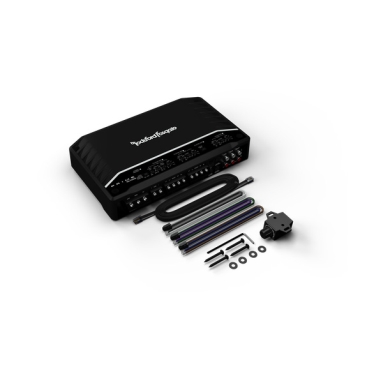

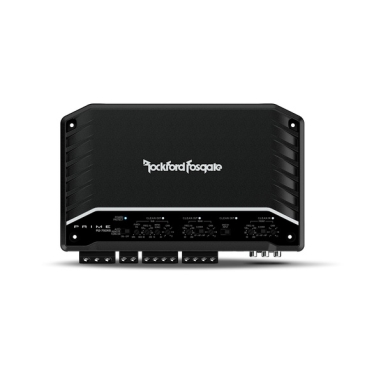

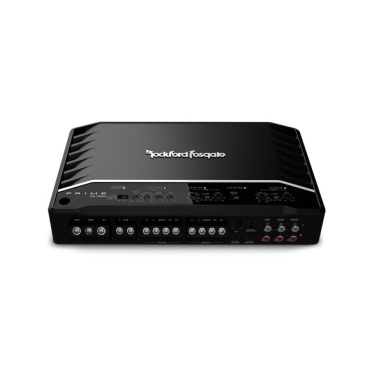

ROCKFORD FOSGATE, PRIME 750 WATT 5-CHANNEL AMPLIFIER

Specifications:

• Number of Channels
  • 5
• Total Power (Sum of Rated Power)
  • 750 Watts
• Rated Power (RMS Continuous Power)
  • 50 Watts x 4 + 200 Watts x 1 @ 4Ω
  • 100 Watts x 4 + 350 Watts x 1 @ 2Ω
  • 200 Watts x 2 + N/A @ 4Ω Bridged/Mono
• Dynamic Power (PVC/PowerCube®)
  • 70 Watts x 4 + 241 Watts x 1 @ 4Ω
  • 114 Watts x 4 + 426 Watts x 1 @ 2Ω
  • 234 Watts x 2 + N/A @ 4Ω Bridged/Mono
• Bridgeable
  • Yes
• Frequency Response
  • 20 Hz – 20 kHz
• Input Sensitivity
  • Low-Level: 150 mV – 4 V
  • High-Level: 450 mV – 12 V
• Circuit Topology Class
  • Class-D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise)
  • Front/Rear 4Ω: <1.0%
  • Front/Rear 2Ω: <1.0%
  • Sub 4Ω: <1.0%
  • Sub 2Ω: <1.0%
• Signal Input
  • Front Low-Level: 2 RCA
  • Front High-Level: 4-Pin Molex
  • Rear Low-Level: 2 RCA
  • Rear High-Level: 4-Pin Molex
  • Sub Low-Level: 2 RCA
  • Sub High-Level: 4-Pin Molex
  • Input Switch: 2/4/5 Input (works for RCA/Hi-Level inputs)



• Signal Output
  • N/A
• Tone Controls
  • 0 to +18 dB @ 45 Hz
• Crossover Controls
  • Front High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Front Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Rear High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Rear Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Sub Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
  • Sub Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth
• Remote Controls
  • Yes
• Visual Indicators
  • Power/Protect
  • C.L.E.A.N. In
  • C.L.E.A.N. Out (front)
  • C.L.E.A.N. Out (rear)
  • C.L.E.A.N. Out (sub)
• Power Wire Gauge
  • 4 AWG
• Power Input Connector
  • Compression Terminal Block
• Speaker Wire Gauge
  • 8 AWG
• Speaker Output Connector
  • Compression Terminal Block
• Cooling
  • Convection
• Operating Voltage
  • 9 – 16 VDC
• Recommended Fuse (not included)
  • 120 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave)
  • 71 A
