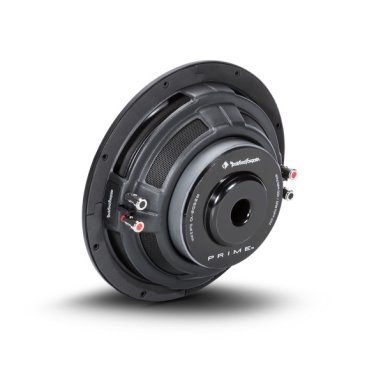

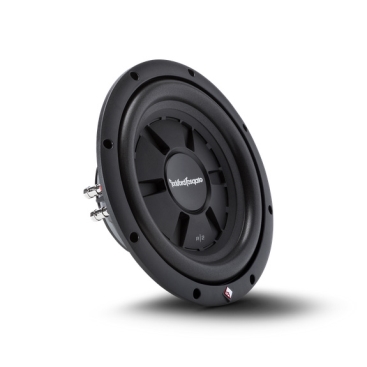

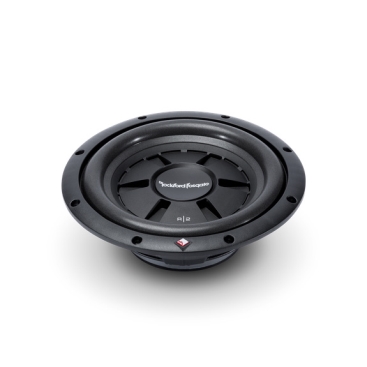

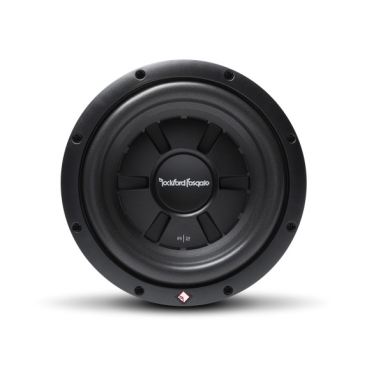

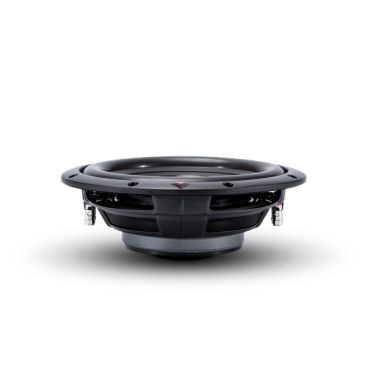

ROCKFORD FOSGATE, PRIME 10″ R2.S 4-OHM DVC SHALLOW SUBWOOFER

Specifications:

• Magnet Weight (oz)
  • 45 oz. 1.28 kg.
• Size
  • 10″
• Nominal Impedance
  • Dual 4-Ohm
• Mounting Depth
  • 3.417 in. (86 mm)
• SPL (dB @ 1w/1m)
  • 82.5
• Fs (Hz)
  • 39.3
• Vas (Liters)
  • 21.7
• Xmax (mm)
  • 8.0
• Cutout Diameter
  • 9.125 in. (232 mm)
• Re (Ohms)
  • 6.60
• Sd (cm²)
  • 333
• Le (mH)
  • 4.2
• Power Handling (Watts RMS)
  • 200 Watts RMS
  • 400 Watts Max
• Voice Coil Diameter
  • 2″ (50 mm)
• Shipping Weight
  • 10.588 Lbs. (4.80 kg.)
• Speaker Connector
  • Dual 12 AWG compression
• Qts
  • 0.73
• Woofer Displacement
  • 0.037 cu. ft. (1.05 Liters)
• Qms
  • 7.00
• Qes
  • 0.81
• CEA-2031 Compliant
• Subwoofer Type
  • Shallow
• Voice Coil Type
  • Dual Voice Coil
• Sealed Box Volume (Vb)
  • 0.7 cu. ft. (19.8 Liters)
• Vented Box Volume (Vb)
  • 1.4 cu. ft. (39.6 Liters)
