METRA, INSTALL A 6.8″ MODULAR RECEIVER IN 2011-2023 FORD VEHICLES WITH THE 107-FD11 DASH KIT

Specifications:

• Stereo installation kit designed to fit 6.8-inch modular receivers or most shallow-mount 4” tall (Double-DIN) aftermarket radios

• Full Double-DIN or L-shaped radios may fit some applications

• Sub-dash modifications are required for Double-DIN or L-shaped radio installations

• A radio replacement interface is required to retain climate control features and access vehicle customization menus previously accessed on the factory screen (sold separately)

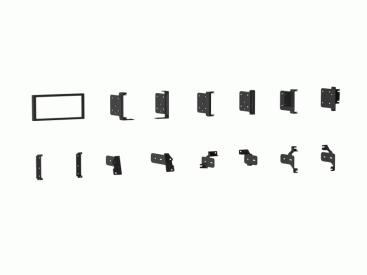

• 7 sets of brackets are included to cover more than a dozen vehicles and for the installation of a Pioneer modular radio for remote chassis mounting

• Brass inserts are molded into the brackets for durability and to retain the factory screen brackets and hardware

• Made from the highest quality ABS plastic for an original factory-like fit and finish

• Includes mounting brackets and hardware parts needed with detailed installation instructions

• A tech support number is available for installation help 7 days a week

• 1-year limited warranty

Applications: ​

• Edge 2011-2020

• Escape 2013-2019*

• Expedition 2015-2021

• Explorer 2011-2019

• F-150 2013-2014

• Flex 2013-2019

• Focus 2012-2018

• Fusion 2013-2019

• Mustang 2015-2022

• Ranger 2019-2021

• Super Duty 2013-2022

• Taurus 2013-2019

Note: Escape is bottom L-shape chassis only or Pioneer modular with chassis on bottom. Shallow mount requires sub dash mods.

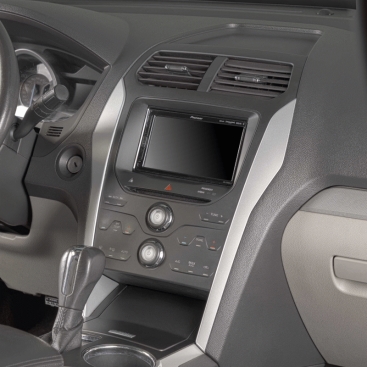

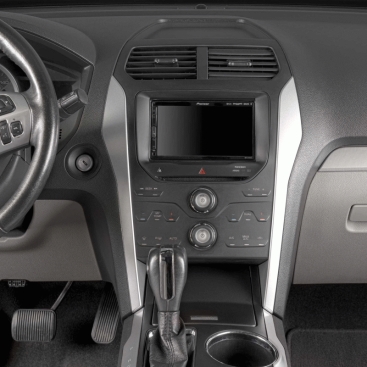

The 107-FD11 is designed to fit select 2011-2023 Ford vehicles with the factory 8-inch screen. This dash kit is exclusively manufactured to install 6.8-inch modular receivers into the dash or most shallow-mount radios. Some applications will accommodate a full Double-DIN or L-shaped radio with sub-dash modifications. Installers should refer to the radio manufacturer for the most up-to-date information. The 107-FD11 has an ABS trim panel to match the dash’s factory finish. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer, but this dash kit is required to make it fit.
