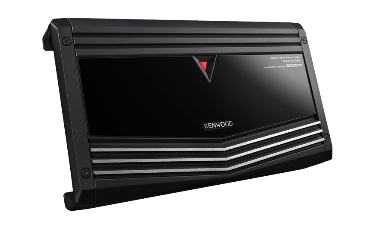

KENWOOD CLASS D MONO AMPLIFIER, 2000 WATTS MAX

Name: KENWOOD CLASS D MONO AMPLIFIER, 2000 WATTS MAX
SKU: KAC-9106D
Price: 196.00 USD
Availability: InStock

$196.00

SKU: KAC-9106D Categories: 1-Channel Mono Amps, Amplifiers Tag: import

Class D Mono Amp

2000 Watts Max power

4 ohms 500W x 1 RMS

2 ohms 1000W x 1 RMS

Signal to Noise Ratio: 100 dB1

Low Pass Filter: 50 – 200 Hz (-24 dB / oct.)1

Infrasonic Filter: 20 – 50 Hz (-24 dB / oct.)1

Bass Boost: 40 Hz (0 – +18 dB)1

Size(inch): (W)13-3/16″ x (H)2-3/16″ x (D)7-9/16″1

Weight(lbs): 6.2

Speaker level input

Bass boost

SPECS

Title	Class D Mono Power Amplifier
Amplifier Type	Class D
CEA-2006 Primary Ratings	Power Output	500Watts RMS x 1 at 4 Ohms and ≤1%THD+N
CEA-2006 Primary Ratings	Signal-to-Noise Ratio	76dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output	MAX POWER	2000W
Power Output	Rated Power at 14.4V	500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.0% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.0% THD)
Specifications	Signal to Noise Ratio	100dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	20Hz-200Hz (+0dB, -3dB) Class D
	Input Impedance	10k ohm
	Speaker Impedance	4Ω (2Ω to 8Ω allowable)
Audio Section	Low-Pass Filter	Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
	Infrasonic Filter	Built in Variable Infrasonic Filter (20Hz-50Hz, -24dB/oct)
	Bass Boost	Built in Bass Boost Control (40Hz, 0dB-+18dB)
	RCA Input Sensitivity	0.2[V] – 5.0 [V]
	Speaker Level Input Sensitivity	4.0[V] – 12.0 [V]
Terminals	Battery & Ground	Screw Type Terminal Block (Ni) (M6)
	Speaker Output	Screw Type Terminal Block (Ni) (M4)
	Line In	RCA (Ni)
	Line Out	RCA (Ni)
	Speaker Input	JST Connector
General	Dimensions(WxHxD)	335 [mm] x 56 [mm] x 192 [mm] 13-3/16 inch x 2-3/16 inch x 7-9/16 inch
	Weight (kg)	2.8 [kg] 6.2 [lbs]
	Operating Voltage	14.4V（11-16V allowable） [V]
	Current Consumption	65 [A]
Key Features	CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Terminal Cover Power MOS-FET Switching Power Supply Cast Aluminum Heat Sink Design Line Output Terminals for Extension
Others	Triangle Indicator
