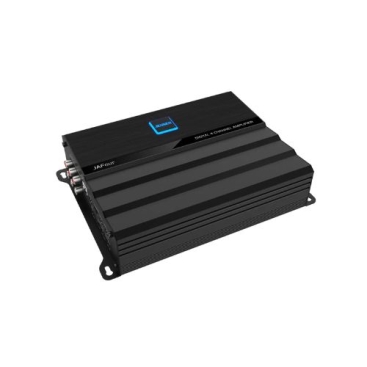

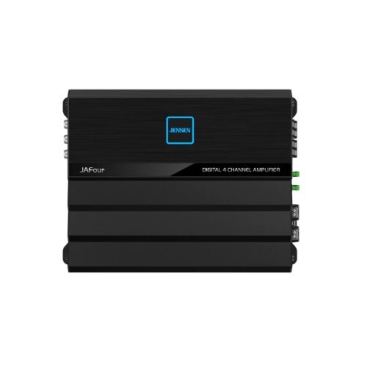

JENSEN, JAFOUR 950W 4-CHANNEL CLASS D MOSFET AMPLIFIER – CTA-2006-D CERTIFIED

Specifications:

• High-power 4-channel performance. Delivers up to 950 watts of maximum dynamic power to drive multiple speakers with clarity.

• Efficient Class D MOSFET design. Combines high-output power with a space-saving, high-efficiency circuit that minimizes heat.

• Flexible audio tuning. Features a selectable crossover with high-pass, low-pass, and full-range options for a custom sound stage.

• Slim and compact profile. The small footprint allows for versatile installation options in various vehicle compartments.

• Verified power standards. CTA-2006-D certification ensures the amplifier meets strict industry standards for rated power output.
• Variable gain: 300 mV – 6 V

• Bass boost: Variable at 45 Hz (0–6 dB)

• Speaker impedance: 2 or 4 ohms


Continuous Power Output (1% THD+N):​

• 130 watts RMS x 4 channels @ 4 ohms

• 215 watts RMS x 4 channels @ 2 ohms

• 440 watts RMS x 2 channels @ 4 ohms (bridged)


 Maximum Dynamic Power (10% THD+N):

• 145 watts x 4 channels @ 4 ohms

• 235 watts x 4 channels @ 2 ohms

• 465 watts x 2 channels @ 4 ohms (bridged)

• Frequency response: 20 Hz – 20 kHz

• Signal-to-noise ratio: 82 dBA (reference: 1 watt RMS)

• Total harmonic distortion (THD+N): <0.12% at 1 watt RMS
