IDATALINK MAESTRO VOLKSWAGEN INSTALLATION HARNESS FOR SELECT VOLKSWAGEN 2016+

Specifications:

Vehicle Compatibility: https://www.idatalinkmaestro.com/en/accessory/849/HRN-RR-VW2
Radio Compatibility: https://www.idatalinkmaestro.com/en/compatible-products/radios

iDatalink’s HRN-HRR-VW2 interface harness allows you to connect an iDatalink-ready car stereo in select 2015-2021 Volkswagen vehicles, working in conjunction with iDatalink’s Maestro ADS-MRR or ADS-MRR2 module. Once connected, you’ll retain these features:

• Multifunction display (metadata, caller ID, navigation guidance) – if the vehicle is equipped
• Steering wheel controls
• Factory amplifier and subwoofer
• Aux input
• Backup camera, dynamic parking guideline overlay, and front camera audIo control (your aftermarket radio must have multiple camera inputs)
• R.A.P (Retained Accessory Power) and parking assist chimes

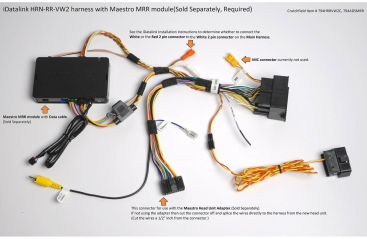

The package includes connectors that plug in between the Maestro module, your Volkswagen radio’s wiring plugs, and your new car stereo. You’ll have to solder or splice together this harness’s power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver’s wiring harness. It also provides the navigation outputs (Parking Brake, Reverse Light, and vehicle speed sense [V.S.S]) you’ll need if you’re connecting to a multimedia receiver.

Extra Functionality
You’ll also gain these extra features when using a compatible iDatalink receiver:

• Performance gauges
• Vehicle information (doors, check engine)
• On-screen parking sensor display
• Navigation information on multi-function display (Kenwood only)

Plug Directly Into Your New Stereo
This harness also features an in-line head-unit connector harness, which will plug into iDatalink’s new “Head-unit direct” harnesses for select radio brands, which eliminates the need to splice any wires. If you’re installing a radio that doesn’t work with a “head-unit direct” harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Product highlights:

• Allows installation of a new iDatalink-ready receiver in select Volkswagen vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
• Retains the use of your steering wheel audio controls
• Retains factory backup camera and allows installation of a second camera (receiver must have 2 camera inputs)
• Displays engine performance data and other vehicle data on touchscreen
• Retains multi-function display, factory amplifier and subwoofer, and aux input
• Compatible with iDatalink’s”Head-unit direct” harnesses

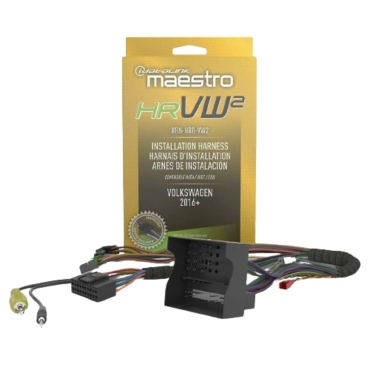

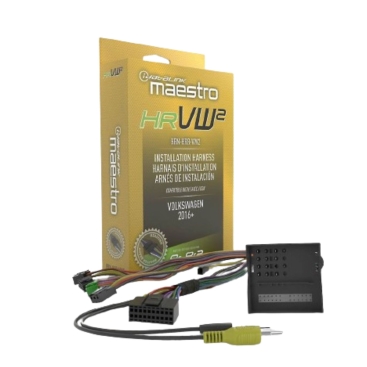

What’s in the box: ​​

• Vehicle/interface harness
• OBDI harness
