IDATALINK, 2013-14 FORD F150 DOUBLE-DIN DASH KIT AND T-HARNESS SOLUTION FOR 4.3 INCH “MYFORD” RADIO

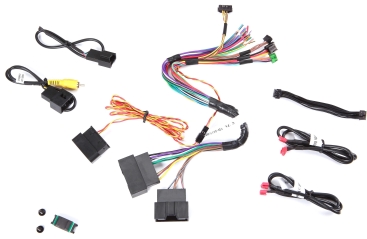

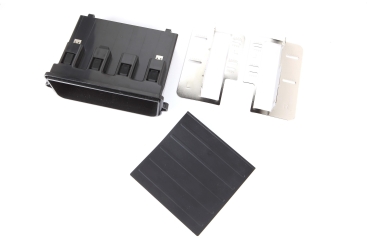

Double-DIN Dash kit and T-harness solution for 2013-2014 Ford F150 with the 4.3 inch “MyFord” radio. Features factory grade fit & finish and adds a convenient storage pocket with flush mounted ports to connect to the aftermarket radio. Includes T-harness, radio panel, steel radio brackets and USB adapter. Maestro RR and iDatalink-compatible aftermarket radio are required and sold separately.

Specifications:

• Allows you to install an aftermarket double-DIN radio in your F-150 (also requires the Maestro ADS-MRR module)
• ADS-MRR module (sold separately) is required to complete installation and retain steering wheel controls
• Kit matches color, texture, and contours of dash.

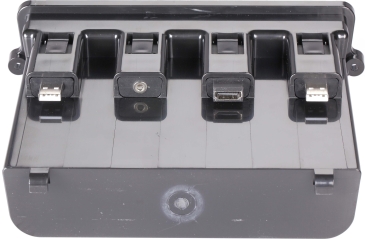

• Pocket included with HDMI, auxiliary, and USB inputs that connect to your new radio.
• Retains factory amplifier and backup camera.
• Retains SYNC features with any iDatalink-compatible car stereo.
• Displays engine performance data on touchscreen with select, JVC and Kenwood receivers.

Applications:

• Ford
  • F-150 “My Ford” (4.3″ screen)
    • 2013-2014

Put a new radio in your F-150

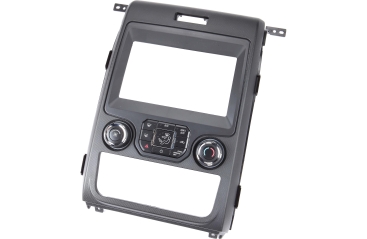

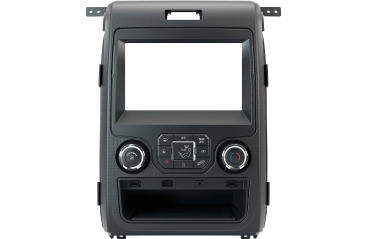

This iDatalink KITF150 dash kit allows you to install an aftermarket double-DIN (4″ tall) receiver in the dash panel. The kit is a perfect match for the color, texture, and contours of your dash, and features climate controls with a factory look. You’ll get a convenient pocket with flush-mounted HDMI, auxiliary, and USB inputs that connect to your new radio.

Module required for this installation

You’ll need the Maestro ADS-MRR module (not included) to complete this installation and retain your steering wheel audio controls. The KITF150 comes with simple plug-in connectors for the Maestro adapter and your F-150’s factory wiring harness.

Retained features

With any car stereo, this package retains your factory amplifier (if equipped) and your backup camera.

With an iDatalink-compatible receiver, you’ll be able to use your receiver’s touchscreen to check your tire pressure, battery voltage, and “door ajar” warnings. You’ll also be able to choose which gauges you’d like to appear on the screen, and you’ll even be able to check the engine codes when a warning light comes on.
