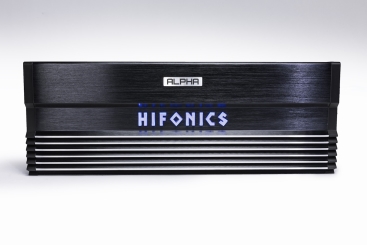

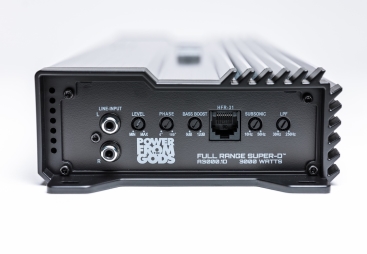

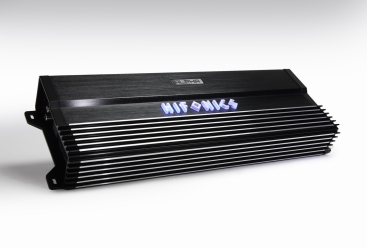

HIFONICS, ALPHA COMPACT 3000 WATT 1 OHM STABLE MONOBLOCK CAR AUDIO AMPLIFIER

Specifications:

• CLASS: Super D-Class®
• TOTAL CHANNELS: 1
• POWER @ 1 OHM: 1 x 3000 Watts
• POWER @ 2 OHMS: 1 x 1500 Watts
• POWER @ 4 OHMS: 1 x 750 Watts
• CROSSOVER: Electronic
• VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE: 0Hz – 250Hz
• TONE CONTROL/PARAMETRIC EQ: Bass EQ
• BASS BOOST: 0~12dB@45Hz
• SUBSONIC FILTER: 10Hz – 50Hz
• PHASE SHIFT: Variable 0-180 Degrees
• VARIABLE VOLTAGE: 0.2V – 6V
• SIGNAL TO NOISE: >90dB
• FREQUENCY RESPONSE: 10Hz – 250Hz
• TOTAL HARMONIC DISTORTION (THD): <1%
• SPEAKER LEVEL AUDIO INPUTS: Yes
• POWER TERMINAL 12V/GND: 8 AWG, 24 AWG
• SPEAKER TERMINAL WIRE GAUGE: 12 AWG
• FUSING: Use Extermal Fuse
• HEATSINK SIZE: Length: 16in x Depth: 5.75in x Height: 2.37in
