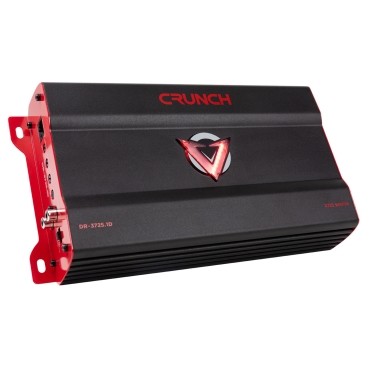

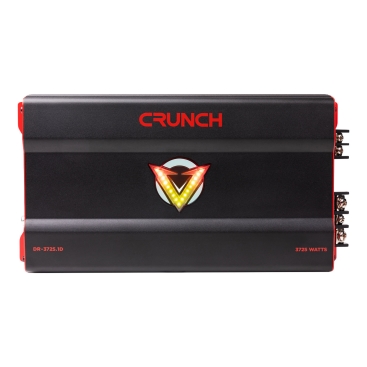

CRUNCH, V-DRIVE 3725 WATT MONO BLOCK AMPLIFIER

Specifications:

• Amp Class: Class D

• Total Channels: 1

• Max Power (watts): 3725

• Power @ 1 Ohm (ch x watts): 1 x 3725

• Power @ 2 Ohms (ch x watts): 1 x 1860

• Power @ 4 Ohms (ch x watts): 1 x 930

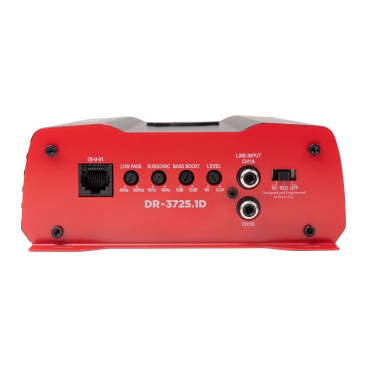

• Crossover: Variable Electronic 12dB Per Octave

• Variable Low Pass Crossover: 40Hz-300Hz

• Tone Control / Parametric EQ: Built-in Bass Control

• Bass Boost: 0-12dB

• Subsonic Filter: 10Hz-40Hz

• Variable Voltage: 0.2-6V

• Signal to Noise: >100dB

• Frequency Response: 10Hz-300Hz

• Total Harmonic Distortion (THD): < 0.5%

• Speaker Level Audio Inputs: RCA

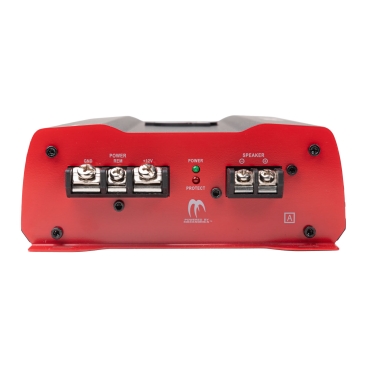

• Power Terminal 12v/GND: 4 AWG

• Speaker Terminal Wire Gauge: 8 GA

• Fusing: External 150A

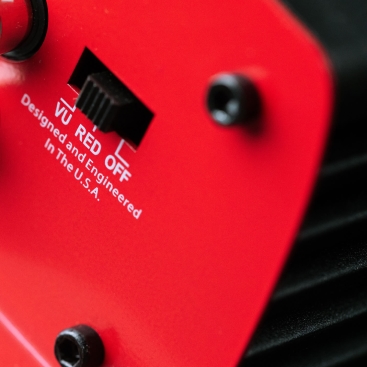

The Crunch V-Drive amplifier features a low noise preamplifier and high-quality RCA inputs for minimal distortion, operating in mono mode with fully adjustable 12dB crossovers and an on-board electronic equalizer. Its Class D design and Crunch SPEED-FET MOSFETs ensure efficient power and high sound quality, while the QTD Technology aluminum heat sink maintains cool operation. The PWM power supply reduces impact on the vehicle’s electrical system, and nickel-plated brass terminals with screw-down connectors ensure secure connections. Additional features include LED protection diagnostics, a wired bass remote for easy adjustments, and selectable logo illumination modes for customizable lighting effects.
