- Specifications
- CLASS
Class A/B - VARIABLE VOLTAGE
6V – 0.2V - SIGNAL TO NOISE
>90dB - FREQUENCY RESPONSE
10Hz-45KHz - CROSSOVER
VeraCross - Switchable
FULL / HPF - VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
CH3 & CH4 - Switchable
HPF/LPF/FULL - HPF
60Hz – 1.2kHz - VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
CH1 & CH2
LPF 60Hz – 1.2kHz
CH3 & CH4 - Switchable
HPF/LPF/FULL - LPF
30Hz – 250Hz - BASS BOOST
Switchable
12 / 6 / 0dB - POWER @ 1 OHM
N/A - POWER @ 2 OHMS
4 x 250 Watts - POWER @ 4 OHMS
4 x 125 Watts - MONO BRIDGED @ 4 OHMS
2 x 500 Watts - TOTAL CHANNELS
4 - AUDIO INPUTS
RCA
AUDIO OUTPUTS - Full Range
- RCA
- SPEAKER TERMINAL WIRE GAUGE
Spade Connector
Recommended - FUSING
15Ax2 - TOTAL HARMONIC DISTORTION (THD)
<0.05%
Features & Benefits - HI LEVEL INPUTS
High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included - OPERATION MODE
4 channel operation mode allows either stereo or mono bridged operation - CROSSOVER TYPE
Variable electronic crossovers allow for complete control of the sound - ELECTRONIC EQUALIZER
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifier - CLASS / TOPOLOGY
Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion - OUTPUT DEVICE TECHNOLOGY
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion - HEAT SINK
QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions - POWER SUPPLY
Rugged MOSFET Pulse Width Modulation power supply
Allows amplifier to product efficient power without taxing the vehicle electrical system - OUTPUT CONNECTIONS
Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion - CONNECTION TYPE
Secure connection for all power, ground and speaker connections. - FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
Daisy chain multiple amplifier to eliminate additional signal cables from the source unit - LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
Brand
Crunch

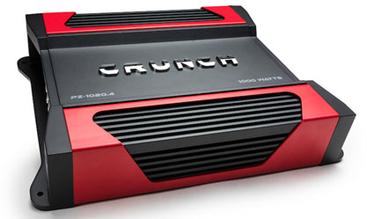

Be the first to review “CRUNCH PZ-1020.4 POWERZONE 1000 WATT AMPLIFIER 4-CHANNEL CAR AUDIO AMP”
