CRUNCH POWERZONE 5-CHANNEL CAR AUDIO AMPLIFIER – 2000 WATT

POWERZONE five channel amplifier highlighted with aggressive heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 2000 watts ofpower in a five-channel application. Bass remote is included.

Specifications:

• 8 lbs
• 19.25 × 7 × 3.25 in
• POWERZONE 2 Series
• Black/Gray
• Compatible Vehicles Universal
• Class D Amp
• 5 Amp Total Channels
• Amp Max Power (watts) : 2000
• Amp Power @ 1 Ohm (ch x watts): 1 x 1000 Sub Only
• Amp Power @ 2 Ohms (ch x watts): 4 x 200 + 1 x 500
• Amp Power @ 4 Ohms (ch x watts): 4 x 100 + 1 x 250
• Amp Crossover: Variable Electronic 12dB Per Octave
• 40Hz-400Hz Amp Variable High Pass Crossover 12dB per Octave
• 40Hz-300Hz Amp Variable Low Pass Crossover 12dB per Octave
• Amp Tone Control / Parametric EQ: Built-in Bass Control
• 0-12dBAmp Bass Boost
• 10-40Hz Amp Subsonic Filter
• 0.2-6V Amp Variable Voltage
• 10Hz-22kHz Amp Frequency Response
• < 0.1% Amp Total Harmonic Distortion (THD)
• Full Range, RCA Pre-amp Audio Outputs
• 4 AWG Amp Power Terminal 12v/GND
• 12 AWG Amp Speaker Terminal Wire Gauge
• External 100A Amp Fusing


Features:

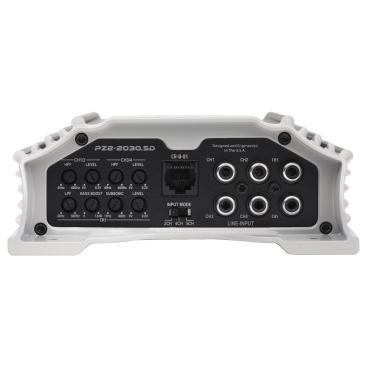

RCA Inputs

• Low voltage RCA inputs produce the highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.



Operation Mode

• 5 channel operation mode.



Crossover Type

• Variable electronic crossovers allow for complete control of the sound.



Electronic Equalizer

• Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.



Class / Topology

• Very efficient D-Class to drive additional power while remaining a small footprint.



Output Device Technology

• Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.



Heat Sink

• QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions.



Power Supply

• Rugged MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the vehicle electrical system.

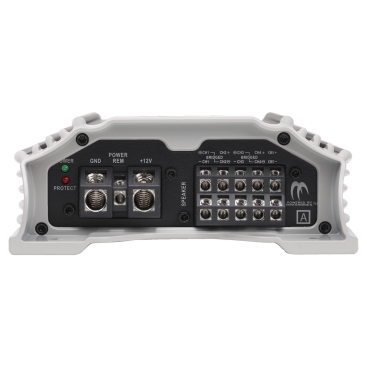

Output Connections

• Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion.



Connection Type

• Secure connection for all power, ground and speaker connections.



LED System Protection Circuitry Diagnostics

• Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.



Bass Remote Included

• Wired Bass Remote allows adjustments to bass frequencies from the remote which can be mounted anywhere in the vehicle. CR-U-01
