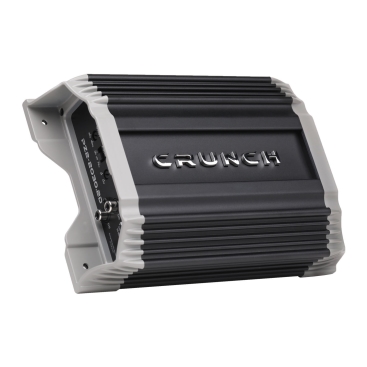

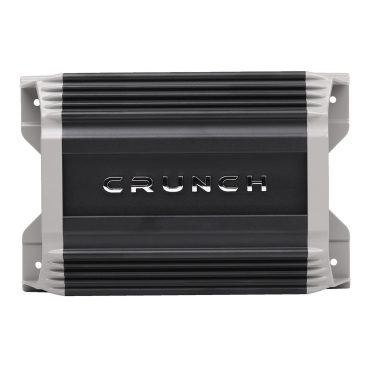

CRUNCH POWERZONE 2-CHANNEL CAR AUDIO AMPLIFIER – 2000 WATTS

POWERZONE two channel amplifier highlighted with aggressive heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 2000 watts of power in a stereo or bridged mono application.



Specifications:

Weight	4.1 lbs
Dimensions	13 × 7 × 3.25 in
Type	Amplifier
Brand	Crunch
Series	POWERZONE 2
Category	Mobile
Condition	New
Color	Black/Gray
Model Replaced	PZ-2020.2
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Class D
Amp Total Channels	4
Amp Max Power (watts)	2000
Amp Power @ 2 Ohms (ch x watts)	2 x 1000
Amp Power @ 4 Ohms (ch x watts)	2 x 500
Amp Mono Bridged @ 4 Ohms (ch x watts)	1 x 2000
Amp Crossover	Variable Electronic 12dB Per Octave
Amp Variable High Pass Crossover 12dB per Octave	40Hz-400Hz
Amp Variable Low Pass Crossover 12dB per Octave	40Hz-400Hz
Amp Tone Control / Parametric EQ	Built-in Bass Control
Amp Variable Voltage	0.2-6V
Amp Frequency Response	10Hz-22kHz
Amp Total Harmonic Distortion (THD)	< 0.5%
Amp Speaker Level Audio Inputs	Yes
Pre-amp Audio Outputs	Full Range, RCA
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	12 AWG
Amp Fusing	External 100A





Features:

RCA Inputs

Low voltage RCA inputs produce the highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.



High Level Inputs

High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included.



Operation Mode

• 2 channel operation mode allows either stereo or mono bridged operation.



Crossover Type

• Variable electronic crossovers allow for complete control of the sound.



Electronic Equalizer

• Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.



Class / Topology

• Very efficient D-Class to drive additional power while remaining a small footprint.



Output Device Technology

• Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.



Heat Sink

• QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions.



Power Supply

• Rugged MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the vehicle electrical system.



Output Connections

• Nickel-plated brass connection with hex set screw terminals allows for secure connection and resist erosion.



Connection Type

• Secure connection for all power, ground and speaker connections.



LED System Protection Circuitry Diagnostics

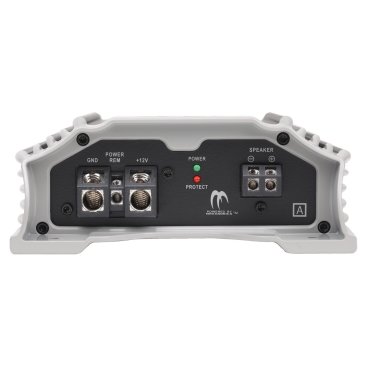

• Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
