CRUNCH POWER ZONE1500 WATT 4 CHANNEL AMPLIFIER

Name: CRUNCH POWER ZONE1500 WATT 4 CHANNEL AMPLIFIER
SKU: pz15204
Availability: OutOfStock

$92.00

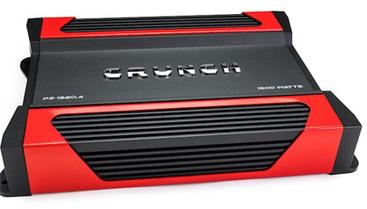

Crunch PZ-1520.4 POWERZONE 1500 Watt Amplifier 4-Channel Car Audio Amp

Out of stock

SKU: pz15204 Category: Uncategorized Tag: import

Description
POWERZONE four channel amplifier highlighted with bright Crunch red heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 1500 watts of power in a four channel application.
Specifications
CLASS Class A/B
VARIABLE VOLTAGE 6V – 0.2V
SIGNAL TO NOISE >90dB
FREQUENCY RESPONSE 10Hz-45KHz
CROSSOVER
VeraCross
Switchable
FULL / LPF / HPF
VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
CH1 & CH2
Switchable
HPF 60Hz – 1.2kHz
CH3 & CH4 Switchable HPF 60Hz – 1.2kHz
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
CH1 & CH2
Switchable
LPF 30Hz – 250Hz CH3 & CH4 Switchable
LPF 30Hz – 250Hz
BASS BOOST 0 – 9dB
POWER @ 1 OHM N/A
POWER @ 2 OHMS 4 x 375 Watts
POWER @ 4 OHMS 4 x 190 Watts
MONO BRIDGED @ 4 OHMS 2 x 750 Watts
TOTAL CHANNELS 4
AUDIO INPUTS RCA
AUDIO OUTPUTS Full Range RCA
SPEAKER TERMINAL WIRE GAUGE Spade Connector
Recommended
FUSING 20Ax2
TOTAL HARMONIC DISTORTION (THD) <0.05%
Features & Benefits
HI LEVEL INPUTS
High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
OPERATION MODE
4 channel operation mode allows either stereo or mono bridged operation
CROSSOVER TYPE
Variable electronic crossovers allow for complete control of the sound
ELECTRONIC EQUALIZER
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifier
CLASS / TOPOLOGY
Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion
OUTPUT DEVICE TECHNOLOGY
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
HEAT SINK
QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
POWER SUPPLY
Rugged MOSFET Pulse Width Modulation power supply
Allows amplifier to product efficient power without taxing the vehicle electrical system
OUTPUT CONNECTIONS
Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
CONNECTION TYPE
Secure connection for all power, ground and speaker connections.
FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
