- Specifications
CLASS Class A/B - VARIABLE VOLTAGE 6V – 0.2V
- SIGNAL TO NOISE >90dB
- FREQUENCY RESPONSE 10Hz-45KHz
- CROSSOVER VeraCross Switchable
- FULL / LPF / HPF
- VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
60Hz – 1.2kHz - VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
30Hz – 250Hz - BASS BOOST
0 – 9dB - POWER @ 1 OHM N/A
- POWER @ 2 OHMS 2 x 550 Watts
- POWER @ 4 OHMS 2 x 275Watts
- MONO BRIDGED @ 4 OHMS
1 x 1100 Watts - TOTAL CHANNELS
2 - AUDIO INPUTS
RCA - AUDIO OUTPUTS
Full Range - RCA
- SPEAKER TERMINAL WIRE GAUGE
Spade Connector
Recommended - FUSING
35Ax1 - TOTAL HARMONIC DISTORTION (THD)
<0.05%
Features & Benefits - HI LEVEL INPUTS
High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included - OPERATION MODE
2 channel operation mode allows either stereo or mono bridged operation - CROSSOVER TYPE

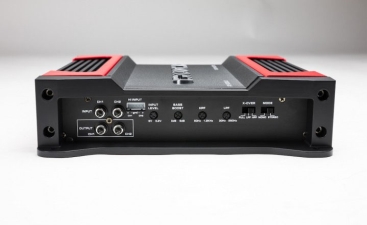

Variable electronic crossovers allow for complete control of the sound - ELECTRONIC EQUALIZER
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifier - CLASS / TOPOLOGY
Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion - OUTPUT DEVICE TECHNOLOGY
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion - HEAT SINK
QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions - POWER SUPPLY
Rugged MOSFET Pulse Width Modulation power supply
Allows amplifier to product efficient power without taxing the vehicle electrical system - OUTPUT CONNECTIONS

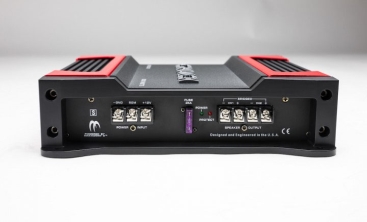

Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion - CONNECTION TYPE
Secure connection for all power, ground and speaker connections. - FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
Daisy chain multiple amplifier to eliminate additional signal cables from the source unit - LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
