CRIMESTOPPER MERCEDES SPRINTER VAN (2009-2013) 3RD BRAKE LIGHT CMOS CAMERA FOR

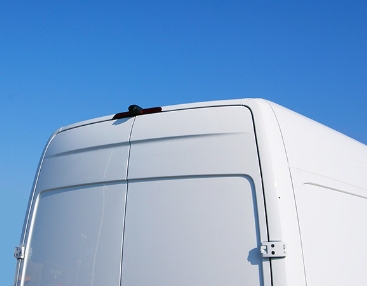

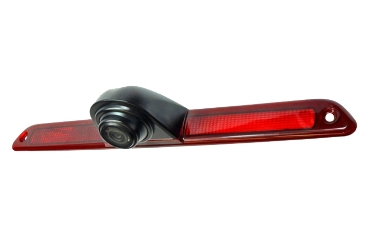

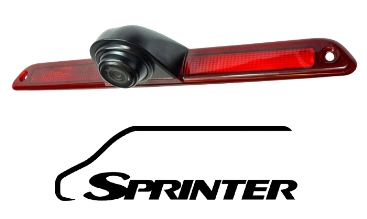

The SecurView™ SV-6902.SPR is a CMOS camera with night vision sealed inside a custom 3rd brake light housing designed specifically for the Mercedes Sprinter cargo and passenger vans. The camera housing completely replaces the upper 3rd brake light on the van giving a custom camera installation without having to do any major work or modifying any panels. The camera lens is mounted up high and angled downward to give the driver the best viewing angle behind the van when backing up.

• Features:

  • 130° Wide horizontal viewing angle
  • Compatible with Mercedes Sprinter cargo van (2009-2013)
  • Includes brake light housing and camera
  • Reverse Image
  • Parking assist lines (Selectable)
  • IR night vision for better night time illumination
  • Constructed of high-grade ABS plastic
  • Looks completely factory once installed
  • Waterproof design

• The SecurView™ SV-6902.SPR is a high-grade CMOS night vision camera set into a custom third brake light housing designed specifically for use on the Mercedes Sprinter cargo van (2009-2013). The camera completely swaps out the factory third brake light on the rear of the van giving it a complete custom camera install without having to drill or modify and exterior body panels on the back of the van.
• The brakelight housing is made of the same durable ABS plastic that the factory brake light is made of so the quality is exactly the same. The light housing also has a nice gel coat finish on the outside to allow the LEDs inside the shine brightly when the brake light is illuminated. The durable plastic will allow the light housing to stand up to an harsh rain, snow or sleet weather elements and the gel coat finish on the outside will keep it protected from fading in the ultraviolet rays of the sun.

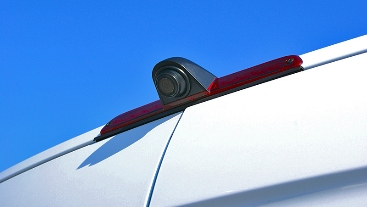

• The camera itself uses a high-grade CMOS image sensor to give the best picture and has a wide 130° viewing angle to give the driver the absolute best view behind the van and includes built-in LEDs for night vision to give better illumination at night. The camera lens is angled downward so that when you mount it up high on the back of the vehicle, you will get a better view of the ground and all of the surroundings behind the vehicle making it safer to back up.
•


SPECIFICATIONS

Image Sensor:  CMOS
Dimensions:   2½”(L) × 13″(W) × 3⅞”(D)
Resolution:  480 TV Lines / 648px(H) × 488px(V)
Minimum Illumination: 0.5 LUX / F1.2
Horizontal Angle:   130°
Vertical Angle:       90°
TV System: NTSC / PAL
Video Output:RCA 1.0Vp-p Composite (75 Ohm load)
Power Source: DC 12V
Power Consumption:  50mA Max
Electronic Shutter:  1/50s – 1/100000s
Gamma Correction: 0.45
Operating Temperature: -22°F – 158°F (-30°C – 70°C)
Waterproof:  IP67 – IP68
Night Vision: Yes
Normal / Reverse Image:Reverse Image
Parking Lines:       Yes (Selectable)

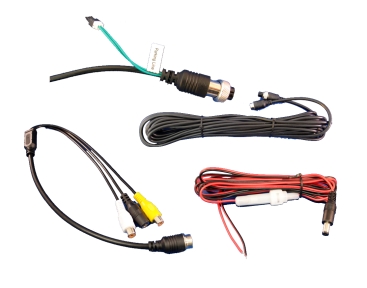

Camera Cable Length: 1½ Ft
Power Cable Length:   8½ Ft
Video Cable Length:  32½ Ft
