AXXESS, PIONEER RADIO INTEGRATION PACKAGE JEEP WRANGLER JL/GLADIATOR

Specifications:

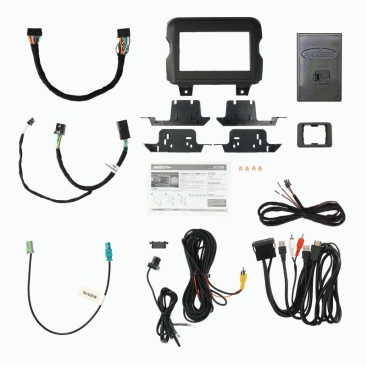

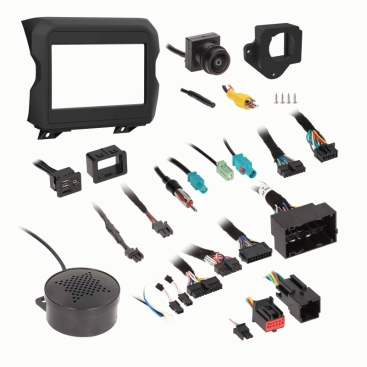

This package includes a dash kit, interface with plug-n-play harnessing, antenna adaptor, USB/AUX/HDMI replacement panel, and direct OE backup camera replacement.

• Designed for Pioneer DMH-W4600NEX/W4660NEX receivers (1) (will work with 9” touchscreens with the additional purchase of the Metra 109-UN02 dash kit)
• Allows retention and adjustment of the factory personalization menu through the Pioneer radio:
  • Provides a visual view of HVAC and gauges on the Pioneer screen
  • Allows adjustment of HVAC functions through the Pioneer screen
• Complete plug-n-play installation:
  • Includes dash kit with Axxess interface and vehicle-specific t-harness
  • Includes iBEAM weather-resistant direct OE camera replacement rated IP68 (not applicable on Jeep Wrangler Gladiator)
  • Includes USB/AUX/HDMI® replacement panel (3ft.)
  • Includes radio antenna adaptor for GPS
• Provides a built-in STOP/START engine override (if equipped)
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles

• Retains safety chimes through offboard speaker
• Designed for amplified or non-amplified vehicles
• Micro-B USB updatable
• Dash kit is painted scratch-resistant matte black to match the factory finish

(1) Refer to radio manufacturer for most current models..

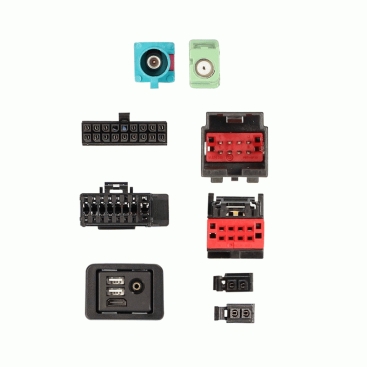

Wiring and Antenna Connections

• Wiring Harness (included with kit)
• Antenna Adapter
  • 40-EU1 (included)
  • 40-GPS-PI0 (included)

Applications:

• Jeep Wrangler JL
  • 2018 – Up
• Jeep Gladiator
  • 2018 – Up
