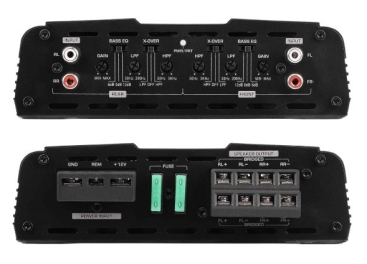

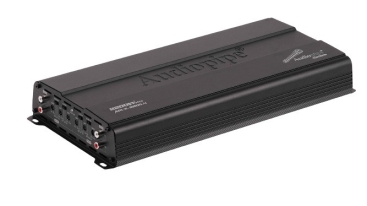

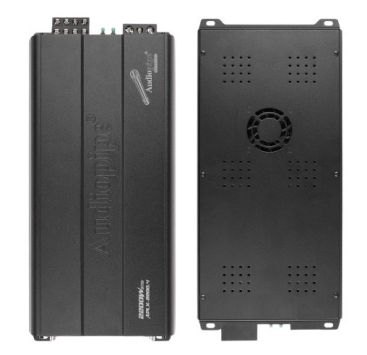

AUDIOPIPE, 2200W CLASS D MOSFET 4-CHANNEL AMPLIFIER WITH BRIDGED OUTPUT AND LOW DISTORTION

Specifications:

• Class D MOSFET amplifier with 2200W peak power

• RMS @ 2 Ohm (<1% Distortion): 4 × 160W

• RMS @ 4 Ohm (<1% Distortion): 4 × 110W

• Maximum Power Output (Bridged): 2 × 320W

• Frequency Response: 10Hz – 25KHz

• Input Sensitivity: 0.15V – 6V

• Signal-to-Noise Ratio: >89dB

• Total Harmonic Distortion (All Channels Driven): ≤0.1%

• Working Voltage Range: 9V – 16V
