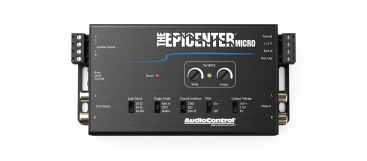

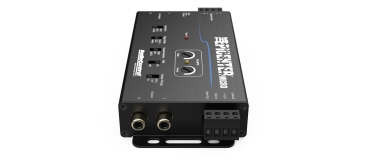

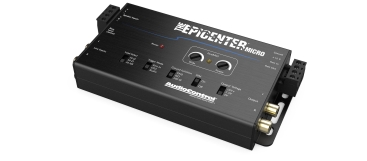

AUDIOCONTROL THE EPICENTER MICRO BASS RESTORATION PROCESSOR & LINE OUTPUT CONVERTER

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to indepenently adjust bass restoration and output level.

Features:

• Patented Digital Bass Restoration
• ParaBASS® Bass Shaping
• Speaker and Line Level Inputs
• Load Matching Circuit
• Multiple Trigger Modes

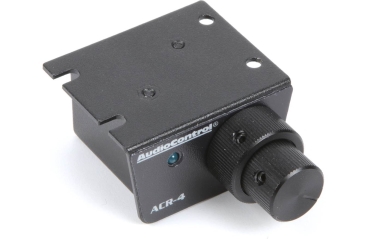

• ACR-4 Dual Knob Dash Mount Control Included

Specifications:

• Inputs
  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Line Level Input: 1 (2 channels)
  • Line Level Input Impedance: 7kΩ
• Outputs
  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Impedance: 150Ω
• Performance
  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: >105 dB
  • Frequency Response: 10 Hz – 22 kHz ±1 dB
  • control
  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)
• General
  • Current Draw: 300 mA
  • Recommended Fuse Rating: 1 A
  • weights & dimensions
  • Dimensions: 5.9″L x 3″D x 1″H
  • Weight: 0.6 lbs. (0.27 kg)
• In the box:

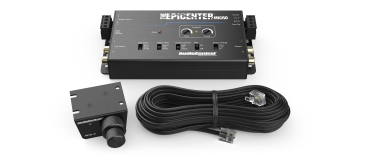

  • The Epicenter Micro, ACR-4, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
