AUDIOCONTROL, EPIC SERIES 5-CHANNEL AMPLIFIER 2 X 400 WATTS @ 4 OHMS BRIDGED

Specifications:

• Compact High-Power Class D Amplifier
• High-Current Design
• 4 x 75 Watts + 1 x 300 Watts @ 4 Ohms
• 4 x 150 Watts + 1 x 500 Watts @ 2 Ohms
• 1 x 700 Watts @ 1 Ohm
• 2 x 300 Watts @ 4 Ohms Bridged
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable HP/LP Filters
• 12 dB/octave Variable Subsonic Filter
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®
• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost
• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections

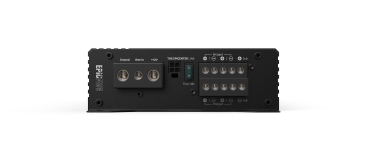

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow
• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (<0.5-1A)
• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue
• Output Over-Current Protection (OCP)
• Input Over-Voltage Protection (OVP)

• Input Under-Voltage Protection (UVP)
• Output DC-Offset Protection (DCP)
• Over-Temperature Protection (OTP)
• Included ACR-E Remote Control Knob
• The Epicenter Link: Connects to EPIC (Power & Remote) to simplify the installation of The Epicenter
