- features

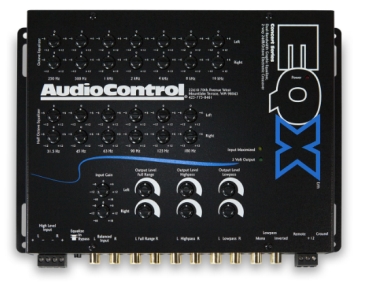

- Stereo Equalization with Crossover
- 6 Band, 1/2 Octave Bass EQ
- 7 Band, Octave Equalizer
- Two-way 24 dB/Octave Linkwitz-Riley Crossover
- Programmable Frequency Match (PFM) Subsonic Filter
- Line and Speaker Level Inputs
- Balanced Inputs
- Input and Output Level Matching Controls
- inputs
Preamp Inputs: 1 (2 channels)
Input Gain: ±18dB
Speaker Level Inputs: 1 (2 channels) - outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 7.5Vrms - performance
Total Harmonic Distortion: 0.005%
Frequency Response: 10Hz-20kHz ±1 dB
Signal to Noise: 110dB at full output
Crossover Type: 24dB/octave Linkwitz-Riley - control
Remote In - general
Power Supply: Variable Isolation Transformer Switching Supply
Recommended Fuse Rating: 2A - weights & dimensions
Dimensions: 8.9″W x 6.9″D x 1.25″H
Weight: 2.7lbs (1.2kg) - in the box: EQX, Power and Speaker Connector, Manual, Warranty
Brand
AudioControl
Be the first to review “AUDIO CONTROL 2-CHANNEL PRE-AMP EQ & CROSSOVER W/ SPEAKER LEVEL, BLACK”
