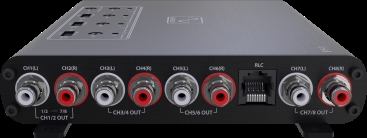

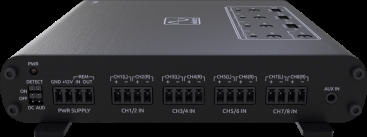

WAVTECH, 8-CHANNEL LOC W/SUMMING AND REMOTE

Features:

• 8-Channel Line Output Converter
• 8-Channel Summing Processor (8-in/8-Out)
• Multi-Function Remote Level/Source Control
  • Master Volume Control
  • AUX Volume Control
  • Independent CH7/8 Level
  • Source/Function Select
• AUX 3.5mm Input
• 2/4/6/8ch Input Select (Direct, Copy or Sum)
• 2/3/4-Way Summing w/Retained Sub Level Control
• Never Zero Ch7/8 Output with Front & Rear Input
• Differential Balanced Inputs
• Low Impedance Outputs
• Variable Gain Adjustments w/Clip LEDs
• Auto Turn-On via DC-Offset or Audio Signal Detect
• Generated +12V Remote Output
• OEM Load Detect Compatible
• Locking Detachable Power/Speaker Terminals
• Professional Grade Panel Mount RCA’s
• Compact Aluminum Chassis w/Detachable Mounting Tabs

Specifications:

• Output Voltage (Max)———- >10Vrms
• Output Impedance ————– <50Ω
• Input Sensitivity
  • SPK —————————- 2-20Vrms, 4-40Vrms
  • AUX —————————- 0.5-5Vrms
• Max Input Voltage (SPK) ——- 40Vrms
• Frequency Response ———— <10 Hz to 100kHz
• THD+N (SPK/AUX) —————- <0.05% /<0.05%
• S/N (SPK/AUX) ——————— >114dBA />113dBA
• Turn-On Trigger ——————- +12V, DC-offset & Audio Detect
• Generated +12V Output ——- >500mA
• Chassis Dimensions ————– 1.1”x5.9”x6.4” (29x150x163mm)
