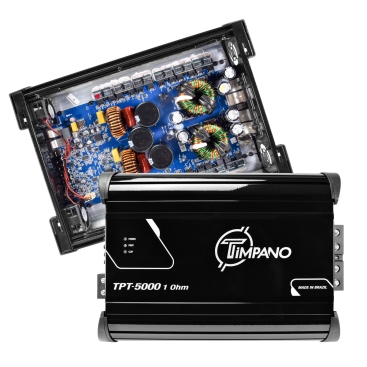

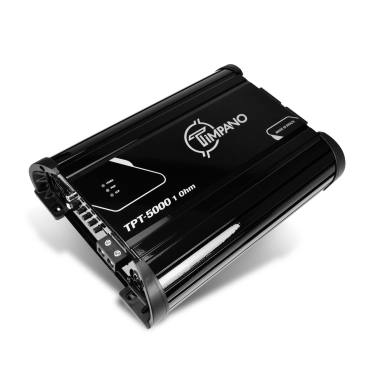

TIMPANO, MONOBLOCK FULL-RANGE CLASS D AMPLIFIER 5000W RMS @ 1 OHM 2800W RMS @ 2 OHM

Specifications:

• 5000W RMS at 1 Ohm

• 2800W RMS at 2 Ohm

• Frequency response: 10Hz – 12kHz

• Full-range amplifier for subs, speakers, and drivers

• Compact size: 9.36” x 7.46” x 3.05”

• Weight: 8.8 lbs

• Efficiency up to 88%

• Built-in HPF: 10Hz – 90Hz

• Built-in LPF: 90Hz – 12kHz

• Bass boost frequency: 30Hz – 70Hz

• Bass boost gain: 0 to +10 dB

• Flat switch disables crossover and bass boost

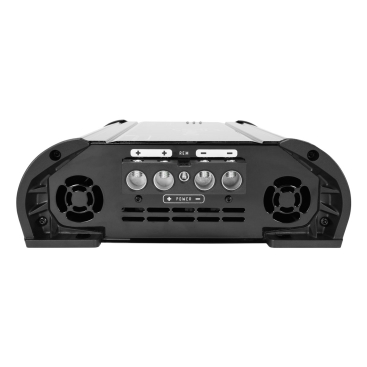

• Dual 0-gauge power inputs

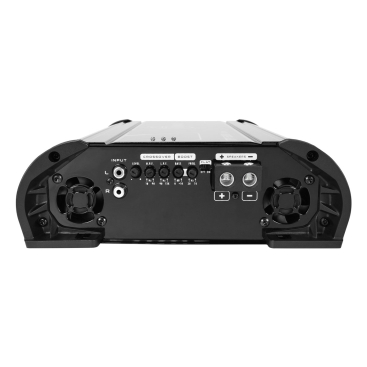

• 4-gauge speaker output terminals

• Signal-to-noise ratio over 90 dB

• Input impedance: 12K Ohm

• Output impedance: 1 Ohm

• Musical current draw: 245A

• Smart 2-way protection circuit

• High-speed MOSFET power supply

• Uses 12V systems (9V – 16V supported)

• Designed with heavy-duty terminals

• Requires 100% copper wiring

• Keep cables away from ignition/starter components

• Always turn off amp before connecting/disconnecting

• Avoid routing wires over sharp metal edges
