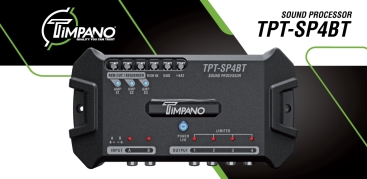

TIMPANO, BLUETOOTH CAR AUDIO SIGNAL PROCESSOR DSP

We have brought the perfect tools to make your sound system the ultimate music machine!

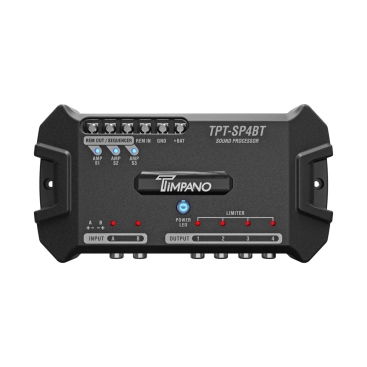

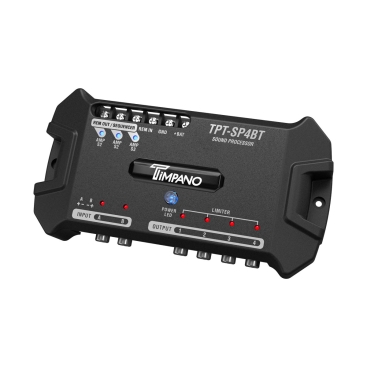

The compact TPT-SP4BT is signal processor ( DSP ) controlled by bluetooth connection direct from your phone or tablet. This powerful tool allows users to optimize the performance of their custom sound system, regardless of whether they are using a aftermarket unit or factory radio.

The processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor allows real-time modification of equalization, crossover filters, alignment, gain control, phase inversion, limiter, input/output routing, and features such as: Battery Voltmeter, Frequency Generator, Frequency Sweep and Pink Noise.

Its exclusive sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3).

Specifications:

• Input: 2 x RCA(A+B) or2 x HIGH INPUT(A+B)
  Output:4(1, 2, 3, 4)
• Graphic Equalizer15 Bands(gain ±12dB)
• Crossover with freq. Variable:
  • Butterworth: 12/18/24/36 dB/8ª
  • Linkwitz-Riley: 12/18/24/36 dB/8ª
• Output Gain: -45dB ~ +15dBper output
• Frequency Generator: 10Hz ~ 22kHzandLevel -60 ~ 0dB
• Battery Voltage Monitor: Current, minimum and maximum voltage
• Frequency Response: 10Hz ~ 22kHz @ 0dB
• Max. Input voltage:
  • RCA: 5,6 Vpp(+8,2 dBu)
  • HIGH INPUT:15 Vpp(+18 dBu)
• Max. Output voltage: 5,6 Vpp(+8,2 dBu)
• Power supply: 10V ~ 15V DC
• Max. Output current SEQUENCER: 180 mAper output
• Rated current consumption: 170mA @ 12.6V DC
• Range: 15 Meters
• Compatibility:
  • Android 5.0 or higher
  • iOS 12 or higher
• Dimensions (H x W x L): 1.3” x 3.8” x 7.4”
• Weight: 0.40 LB
